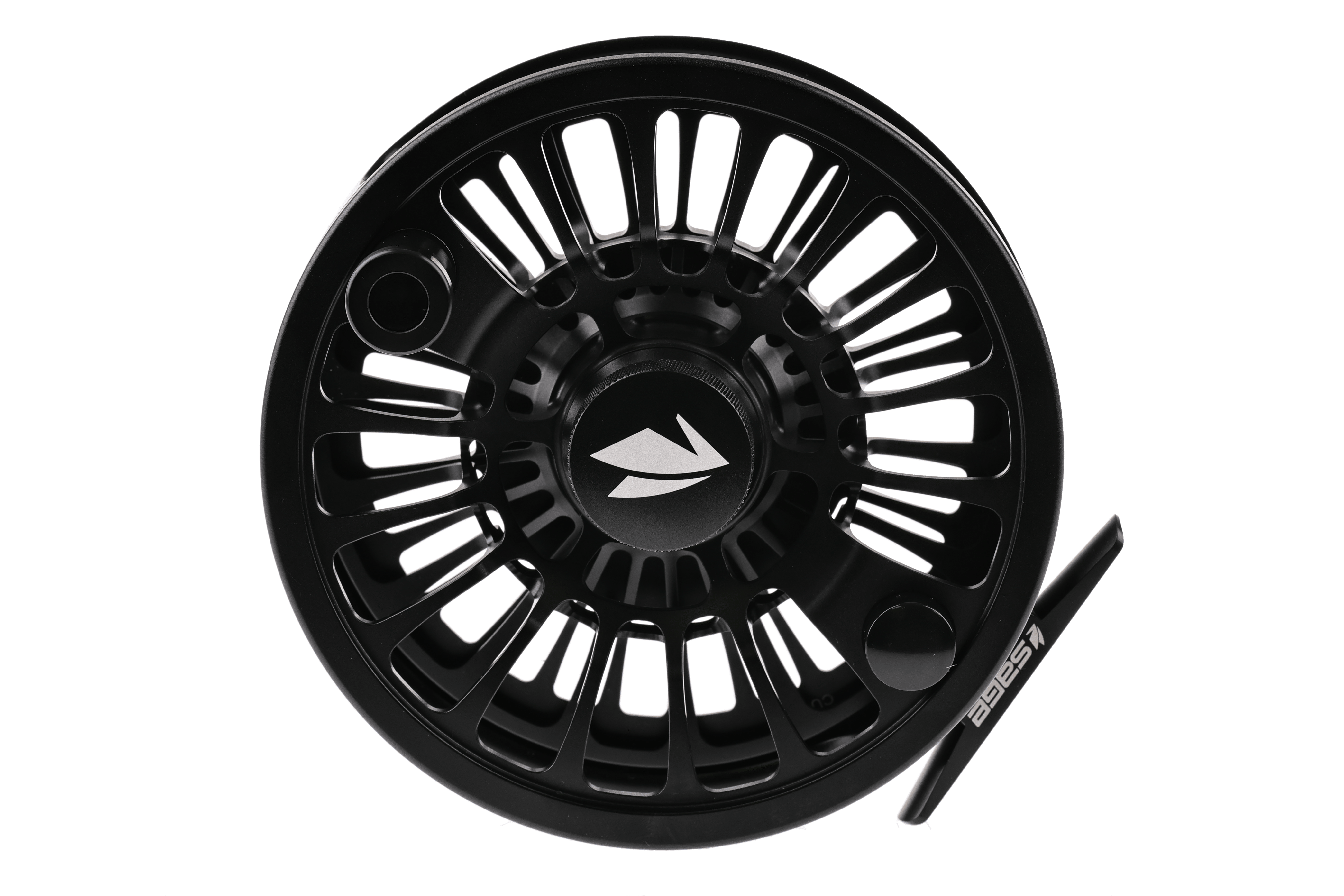

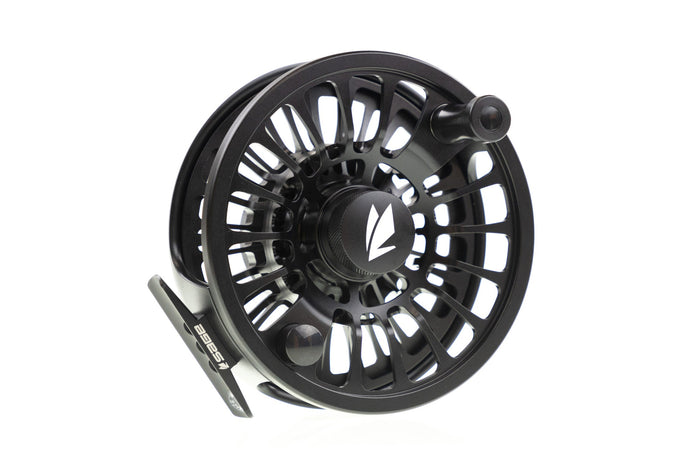

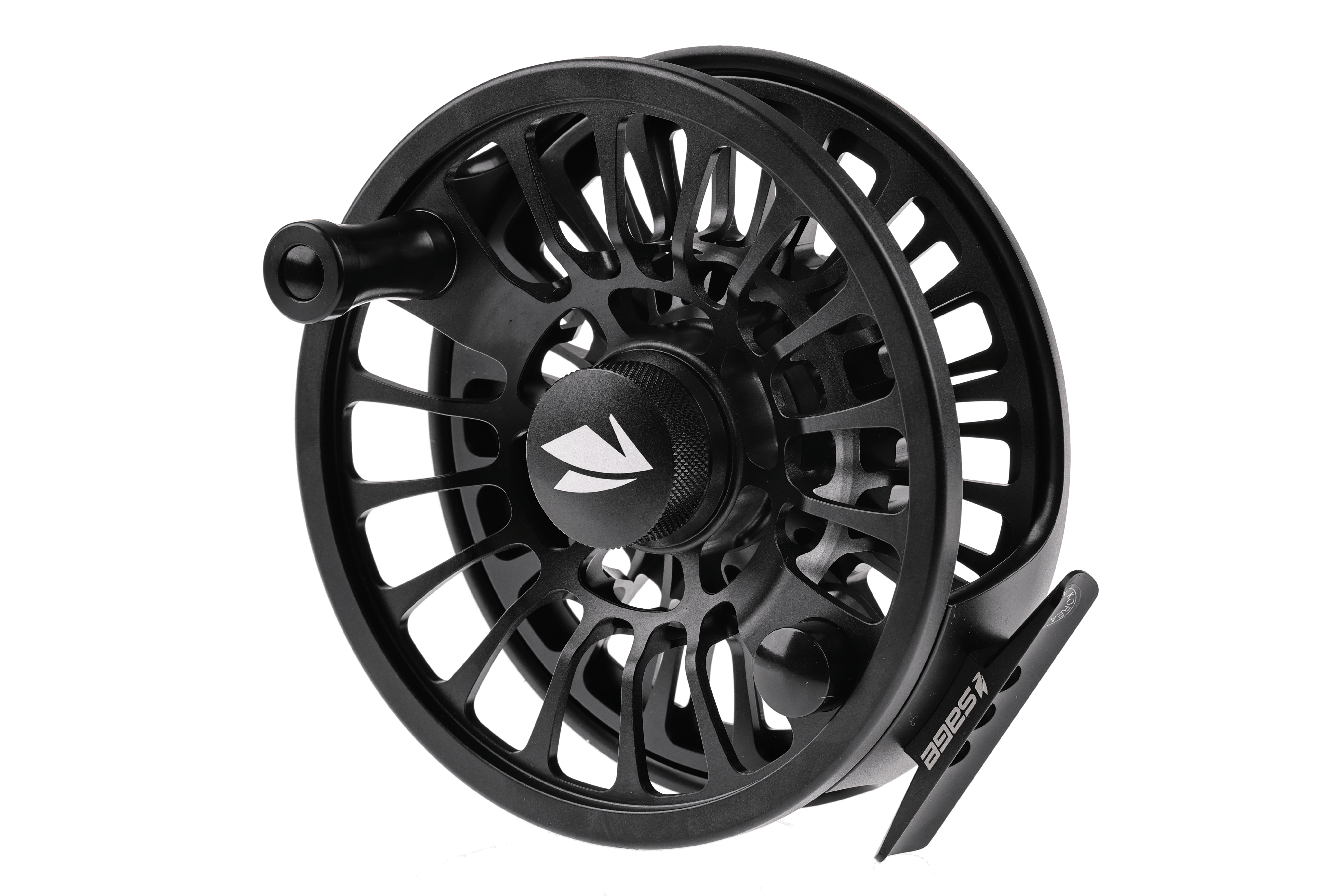

Sage Thermo Fly Reel

The Sage Thermo Fly Reel is named for the one thing that decides whether a big game reel survives its first serious fish: heat. A drag does not stop a running fish so much as convert the energy of that run into heat, and Sage says so plainly, describing the SCS drag as taking the kinetic energy of a running fish and dissipating it as thermal energy. Everything that goes wrong with a drag under a tarpon, a giant trevally or a blue marlin is downstream of that heat, which is where fade, skipping and permanent wear come from. Sage's answer on the Thermo is not a new material but more of it: extra-large carbon brake discs, sealed, with the surface area to spread the heat of a long run instead of concentrating it. The reel delivers 0 to 20 pounds of drag across two sizes, a 10-12 and a 12-16, both offered in Stealth and in Champagne, and both hold better than 500 yards of backing. This is a specialist tool for bluewater and big flats work, not a reel that gets pressed into trout duty.

Design

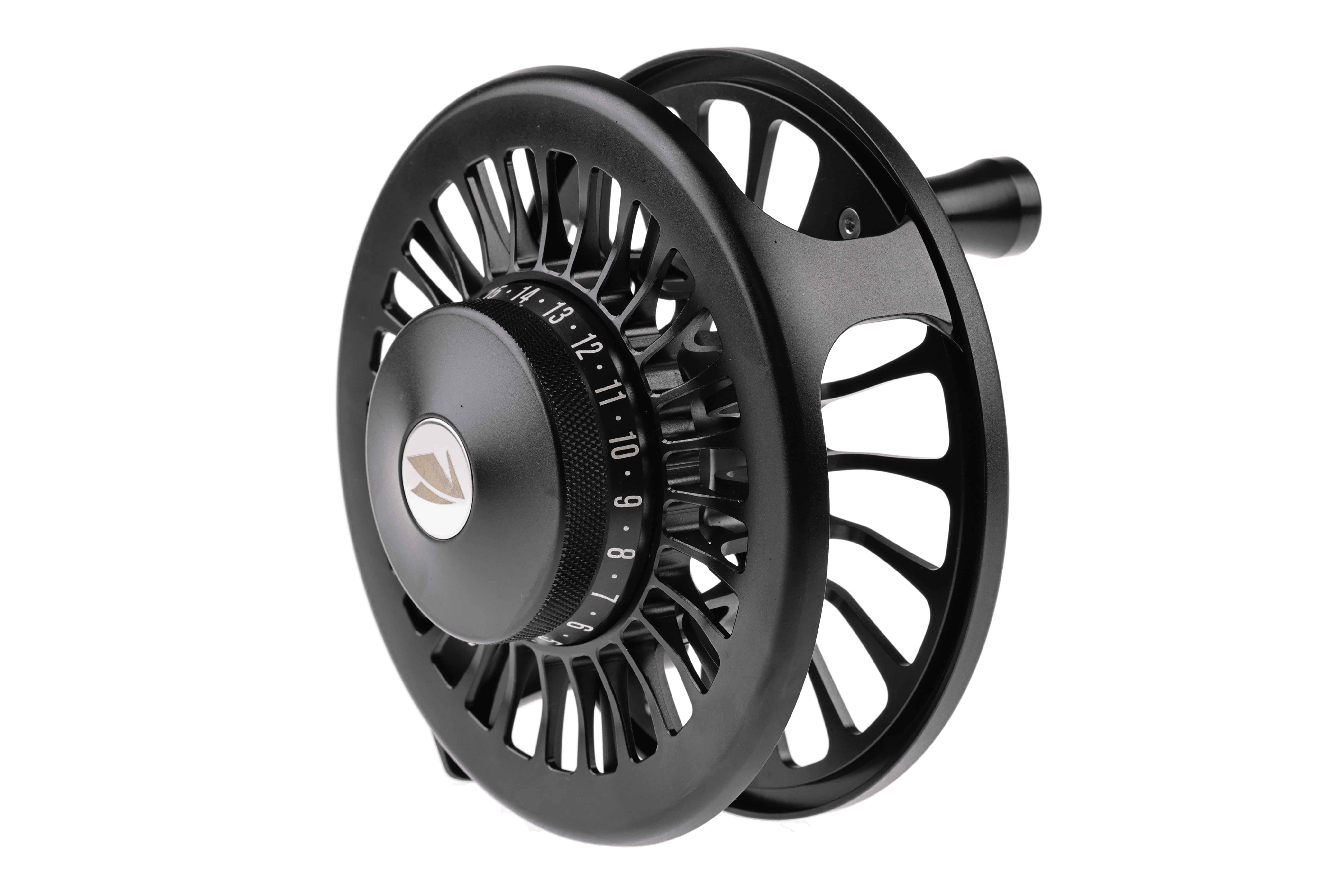

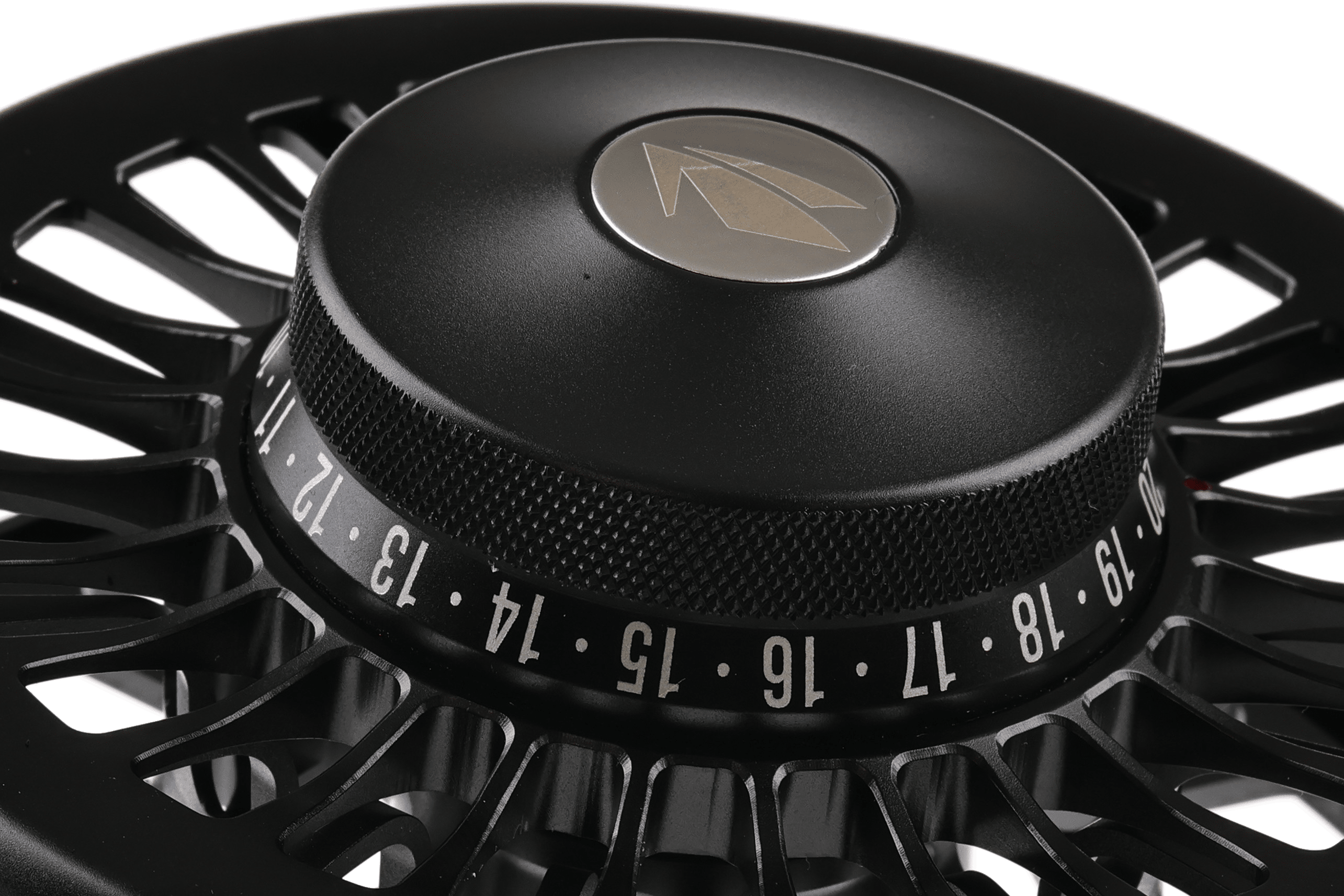

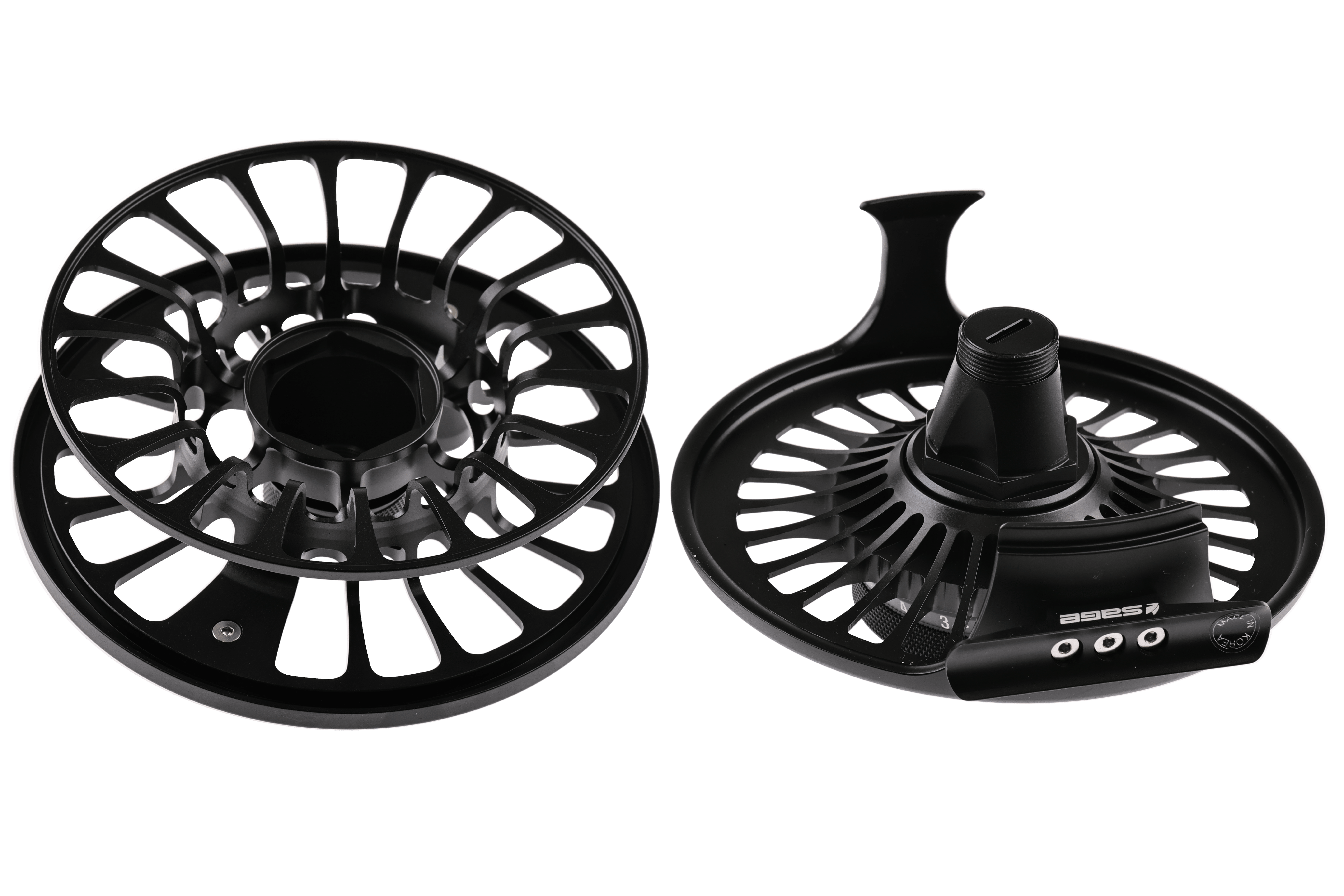

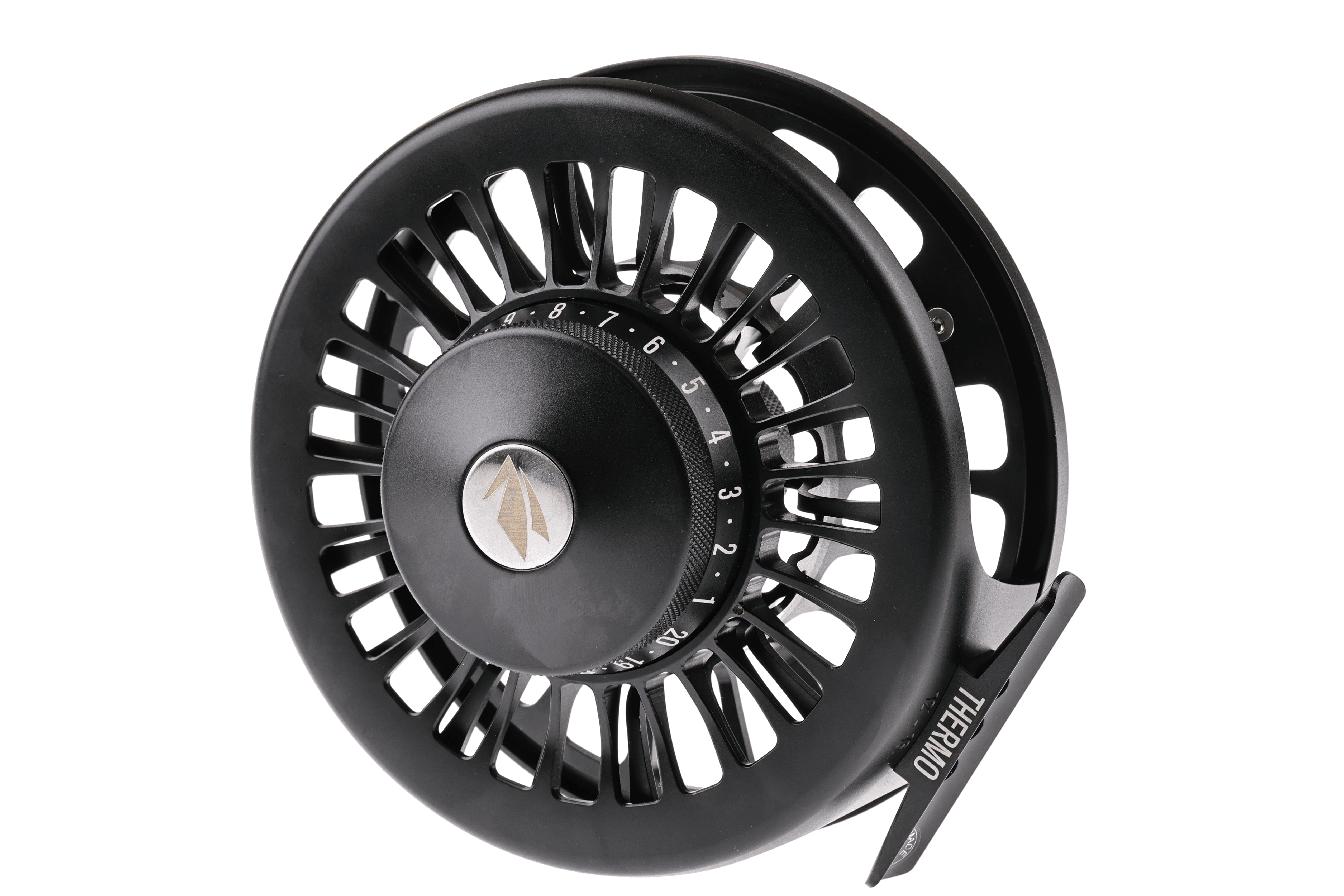

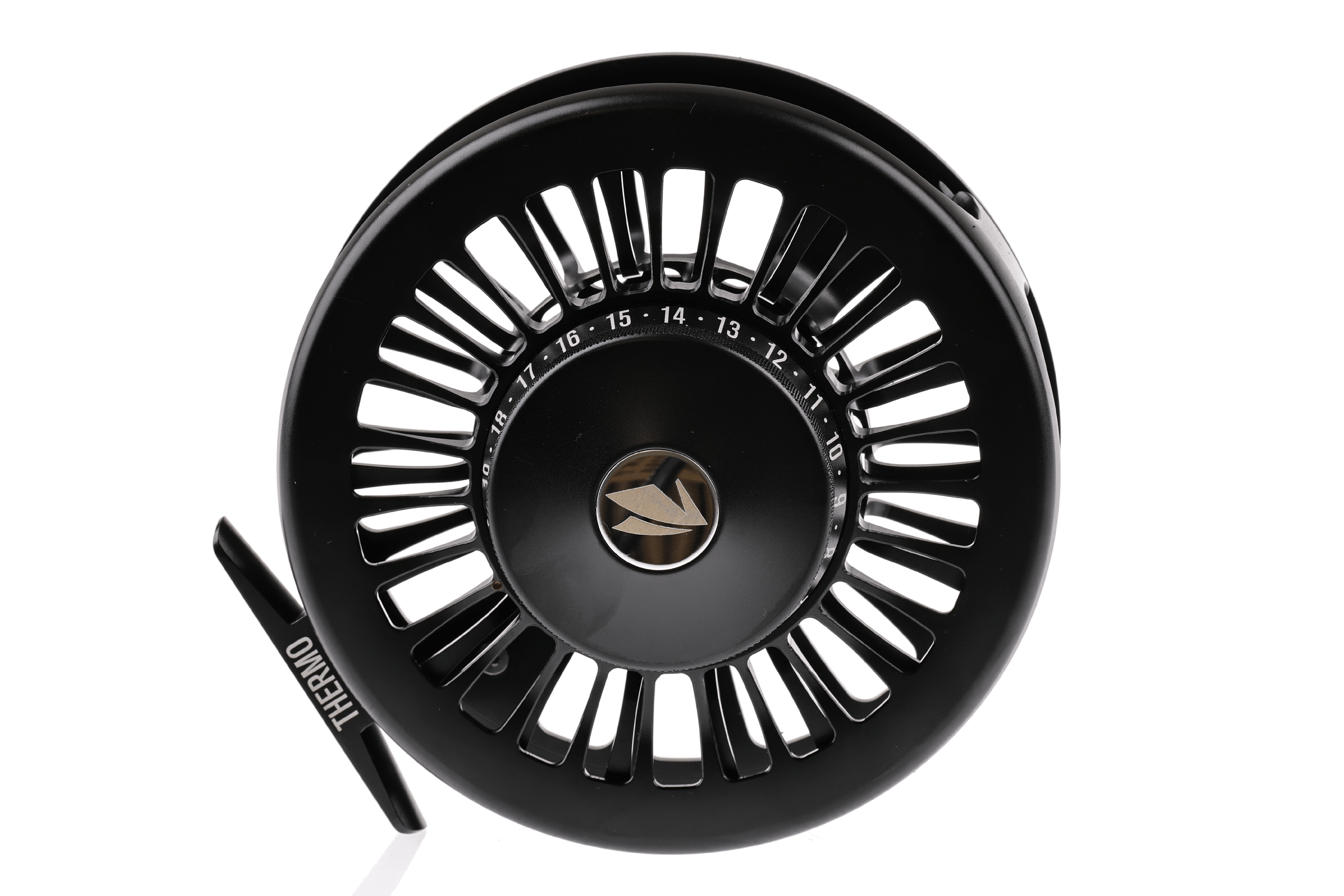

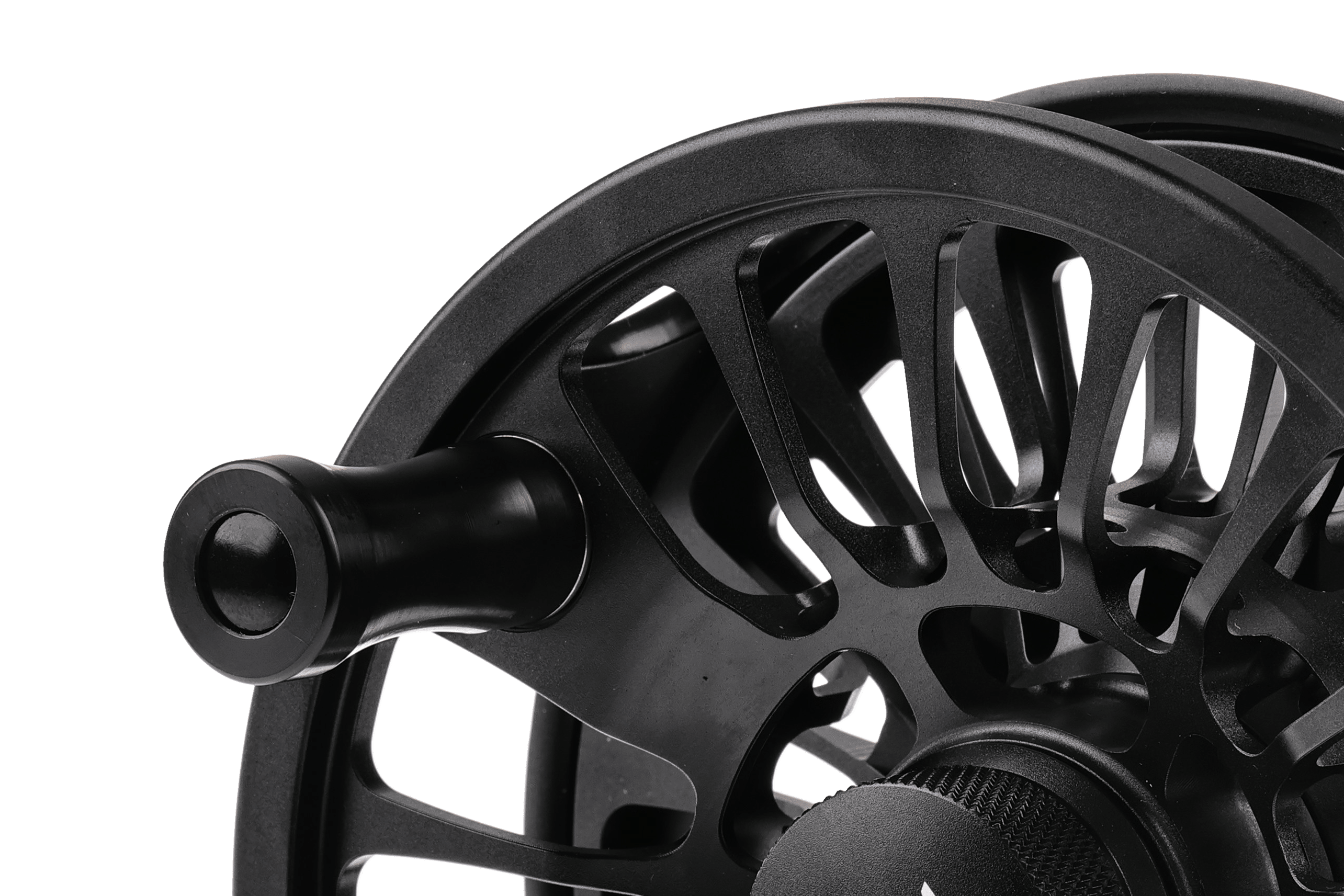

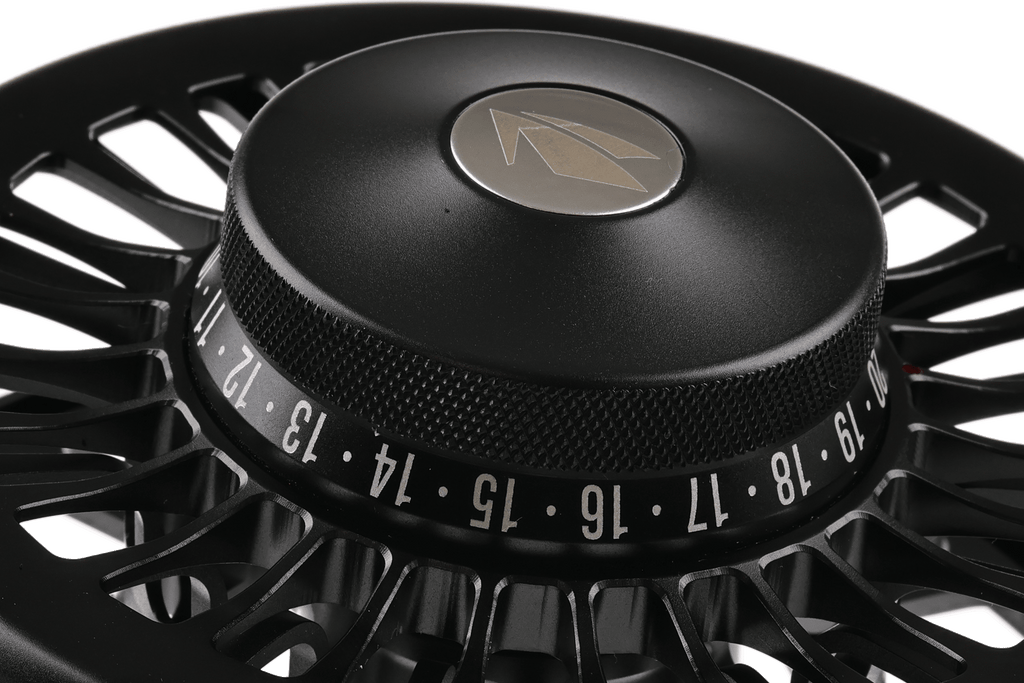

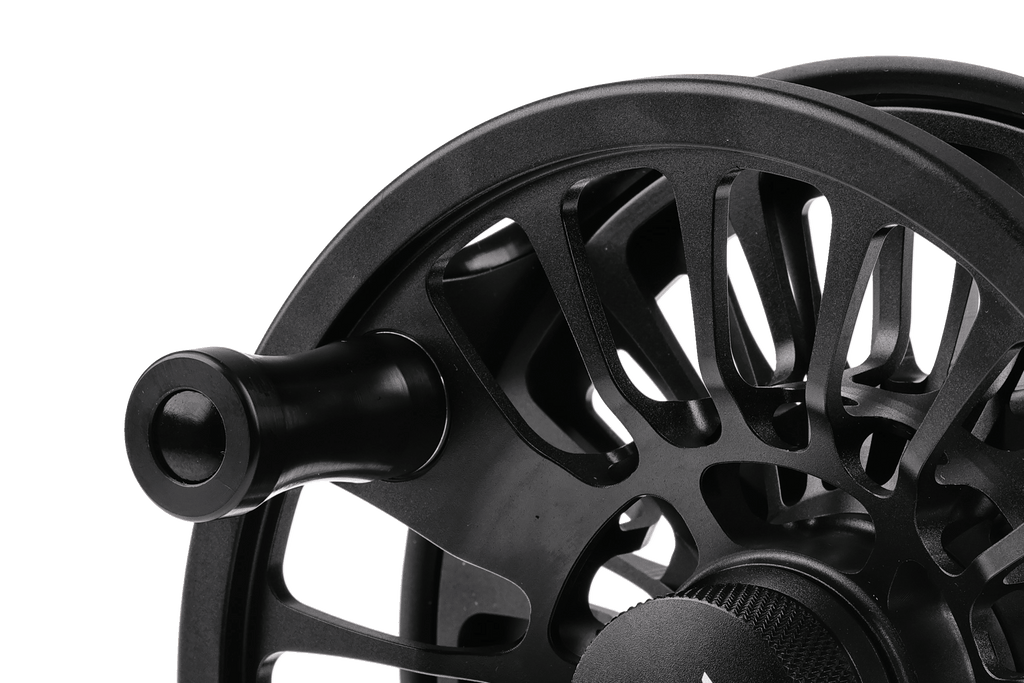

Fully machined frame and spool, deliberately heavier and thicker in section than a freshwater reel of the same diameter. Sage built the frame and spool to take the abuse specific to fishing from a boat, where a reel gets knocked against a gunwale and pounded through breakers rather than set down on a gravel bar. Both sizes run the same 1 3/4 inch spool width, so the 12-16 buys its extra capacity through diameter alone, 5 3/16 inches against 4 7/8 inches on the 10-12. Weights are 15 1/16 ounces and 15 9/16 ounces, which is heavy in absolute terms and appropriate on a 12 weight, where reel mass is part of how the rod balances. The One Revolution Drag Knob puts the entire drag range inside a single turn, with 20 numbered settings and 39 detents, so you can go from stripping tension to fighting pressure without counting turns or losing your place mid-fight. It is large in diameter on purpose, easy to grip and move with a wet hand. A quick-change spool mechanism with a screw tight spool lock and knurled lock nut lets you swap spools by hand on the deck, and the reel converts between left and right hand retrieve.

Finish

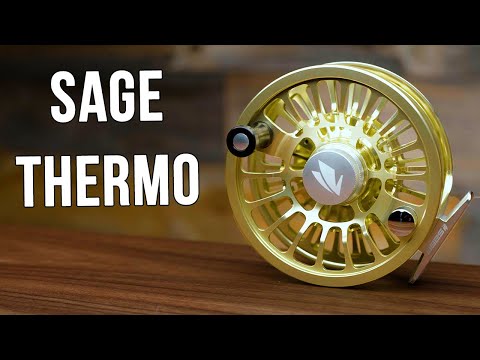

Sage anodizes its machined reels after CNC machining for surface protection, corrosion resistance and durability. On a reel that will live in salt spray and get rinsed and put away wet, that oxide layer is the first line of defense on the exterior, while the sealed drag handles the interior. Two colors are offered and both are available here in both sizes: Stealth, a matte dark finish, and Champagne, a light gold. The choice is cosmetic; the finish process and the hardware underneath are identical.

Materials

Frame and spool are 6061-T6 aerospace grade aluminum, cold forged and tempered before machining, then cut on CNC centers to Sage's tolerances. The cold forging matters more here than on a lighter reel. It compacts the grain of the alloy and adds strength and rigidity, which is what allows a frame at this diameter to stay stiff under 20 pounds of drag plus the leverage a fish applies at the rim. A frame that flexes under load opens the gap between spool and frame, and that gap is where thin running line and backing get pinched. The drag discs are carbon, from a proprietary high grade carbon that Sage sources in the USA.

Drag

Type - Sage's Sealed Carbon System, or SCS, in what Sage calls an ultra-robust package built and tuned specifically for the extreme end of the range. It is fully sealed. Sage states the entire system is sealed to keep out water, sand, grit and salt, so a wave over the gunwale, a spool laid down in beach sand or a rinse at the dock has no path to the drag surfaces. Range is 0 to 20 pounds, and the claim Sage makes about it is consistency rather than peak number: the same pressure through the entire run, with no drop-off, no skipping and no wear from overheating. Each SCS drag is hand-calibrated, and Sage configures the stack per model and size rather than running one drag across the line, so the Thermo package is not a trout drag scaled up.

Materials - Extra-large carbon brake discs. Carbon is the reason the heat story works. It is the same class of material used in jet and Formula 1 brakes, and unlike cork, plastic or polymers such as Delrin and Rulon, it does not compress, deteriorate, melt or burn as it absorbs heat, so the setting you dialed at the strike is still the setting you have 300 yards into a run. Sizing the discs extra-large spreads that heat over more area, which is what keeps the surface temperature down during the repeated long runs a big fish forces. Carbon also has very low startup inertia, meaning the force needed to start the spool turning is close to the force needed to keep it turning, so a fish that bolts from a standstill does not hit a spike that pops the tippet. Because the stack is sealed it requires no routine cleaning or greasing to keep behaving that way.

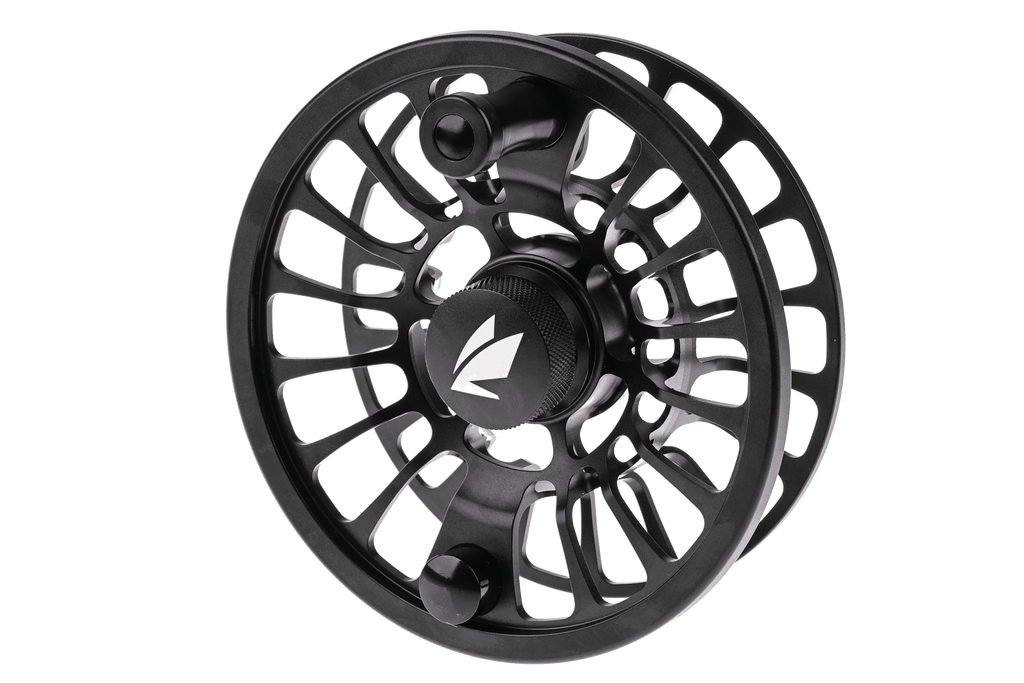

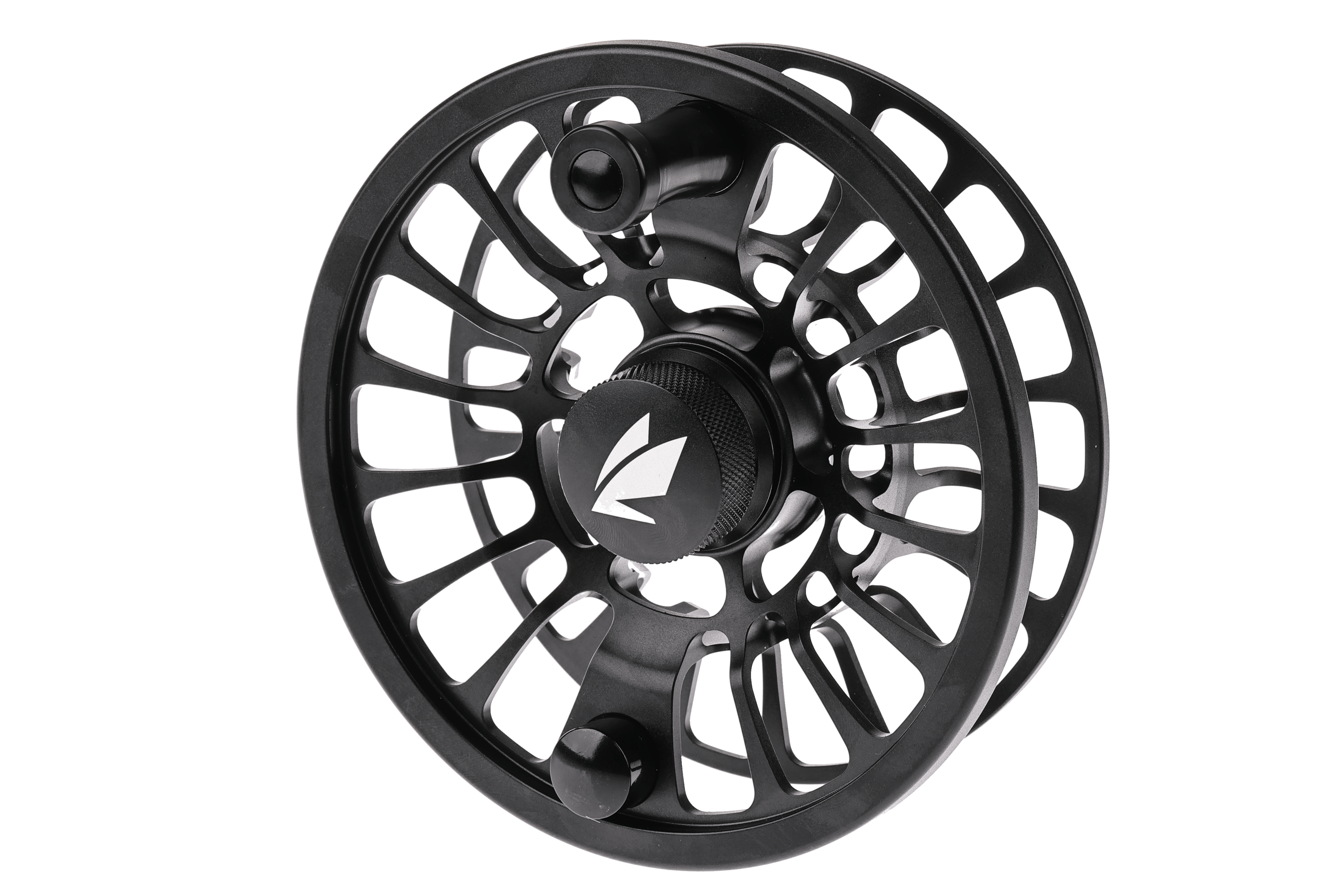

Arbor Size

Large arbor, with a concave and ported profile. The concave arbor is a structural decision as much as a capacity one: the curved surface adds stiffness, which is what lets Sage port the arbor and remove material without giving up strength. The retrieve benefit is the obvious one, faster line pickup and less coil memory in the fly line. The less obvious benefit is the one that matters on a fish that takes you deep into backing. Because the starting diameter is large, the working diameter does not fall off much as line leaves the spool, so the effective drag pressure the fish feels stays closer to what you set instead of climbing as the spool empties. Both sizes carry more than 500 yards of backing: the 10-12 holds a WF12 line plus 300 yards of 30 pound backing, or 450 yards of 65 pound GSP, and the 12-16 holds a 550 grain shooting head and running line plus 400 yards of 30 pound backing, or 600 yards of 65 pound GSP.

Warranty

Sage covers the Thermo with an original owner lifetime warranty against defects in materials and workmanship on reels bought through an authorized dealer. Coverage stays with the original owner, who must send in the product, and it excludes misuse, neglect, normal wear, fire, theft, intentional breakage and modification. Anything outside the warranty is handled as a paid repair, and Far Bank, Sage's parent company, charges one flat rate for reels rather than the age based tiers it applies to rods: as of August 2026, repairs on Sage and Redington reels not covered by warranty are 50 dollars. You pay to ship the reel in and Far Bank pays the return shipping. Far Bank quotes roughly two to four weeks for reel repairs.

More Info

• Best for: Saltwater big game, bluewater and heavy flats work on 10 through 16 weight rods, tarpon, giant trevally, tuna, billfish and sharks
• Drag: Sealed Carbon System (SCS), fully sealed, 0 to 20 lb range, extra-large carbon brake discs
• Drag Knob: One Revolution knob, 20 numbered settings and 39 detents in a single turn, hand-calibrated
• Arbor Size: Large, concave and ported
• 10-12: 4 7/8 in diameter, 1 3/4 in spool width, 15 1/16 oz, holds WF12 plus 300 yd of 30 lb backing or 450 yd of 65 lb GSP
• 12-16: 5 3/16 in diameter, 1 3/4 in spool width, 15 9/16 oz, holds a 550 gr shooting head plus running line plus 400 yd of 30 lb backing or 600 yd of 65 lb GSP
• Colors: Stealth and Champagne, both available in both sizes
• Retrieve: Convertible left or right hand
• Frame and Spool: Cold forged and tempered 6061-T6 aluminum, fully machined, anodized
• Spool Change: Quick-change mechanism with screw tight spool lock and knurled lock nut
• Spare Spools: Available separately in both sizes
