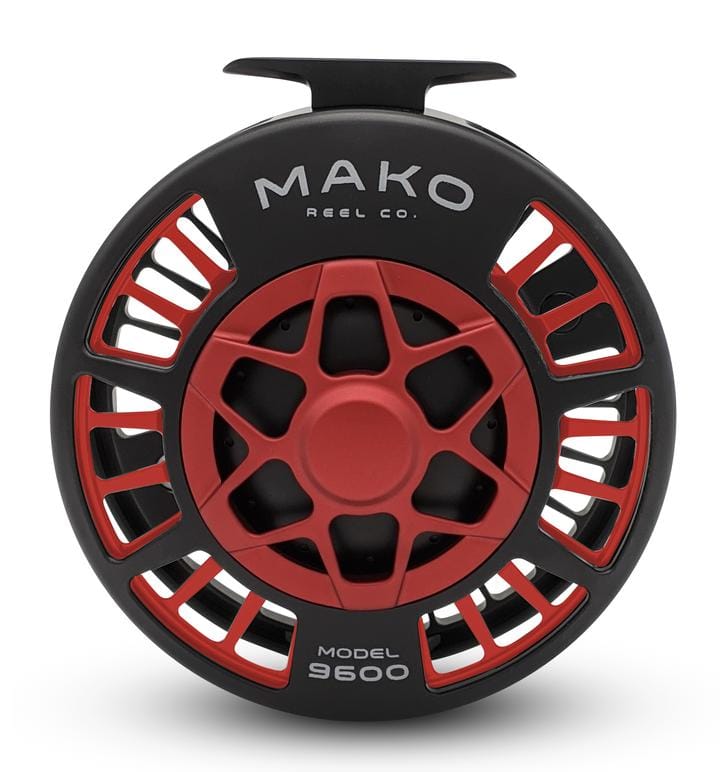

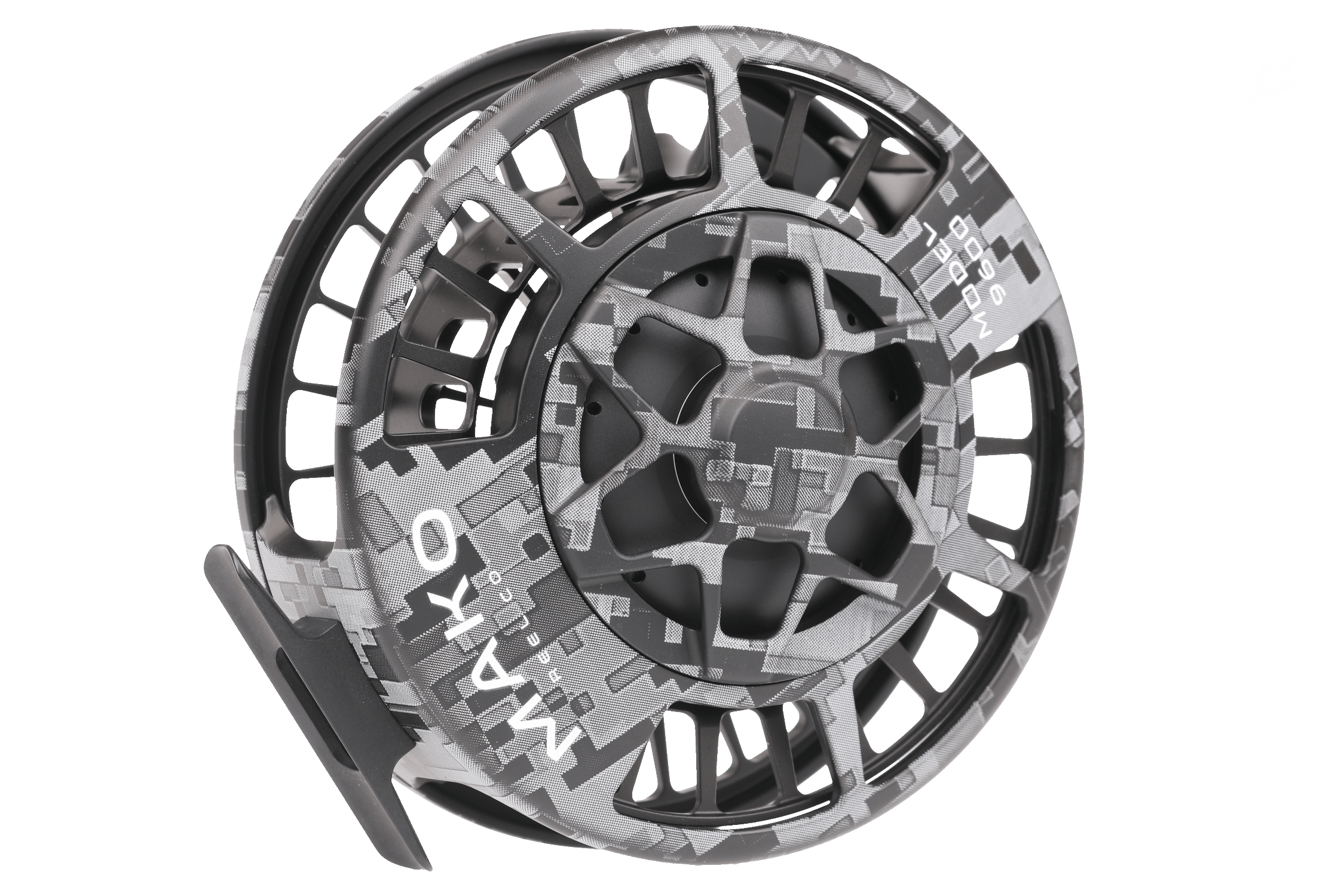

Mako 9600 Large Fly Reel

The Mako 9600 Large Fly Reel is the size in Mako's saltwater range that stops being a general purpose reel and becomes a big fish tool. Mako's own naming makes the ladder plain: the 9500 is the Inshore reel, the 9550 the Medium, the 9700 the Bluewater, and the 9600 is the Large Saltwater model that sits between the everyday flats size and a true offshore reel. It runs a 5 inch frame, weighs 15.23 ounces, is rated 10 to 12 weight, and swallows 330 to 440 yards of 60 to 80 pound braid behind a WF10. Everything the brand is known for is present without compromise: a fully sealed full-contact carbon fiber drag, a calibrated one-turn-stop knob, a taper lock quick-change spool and a three ball bearing spindle, hand assembled and individually calibrated before it ships. This is a reel for tarpon, giant trevally, big permit and tournament work, where the fish gets one honest run and the drag has to be identical on the tenth season as it was on the first.

Design

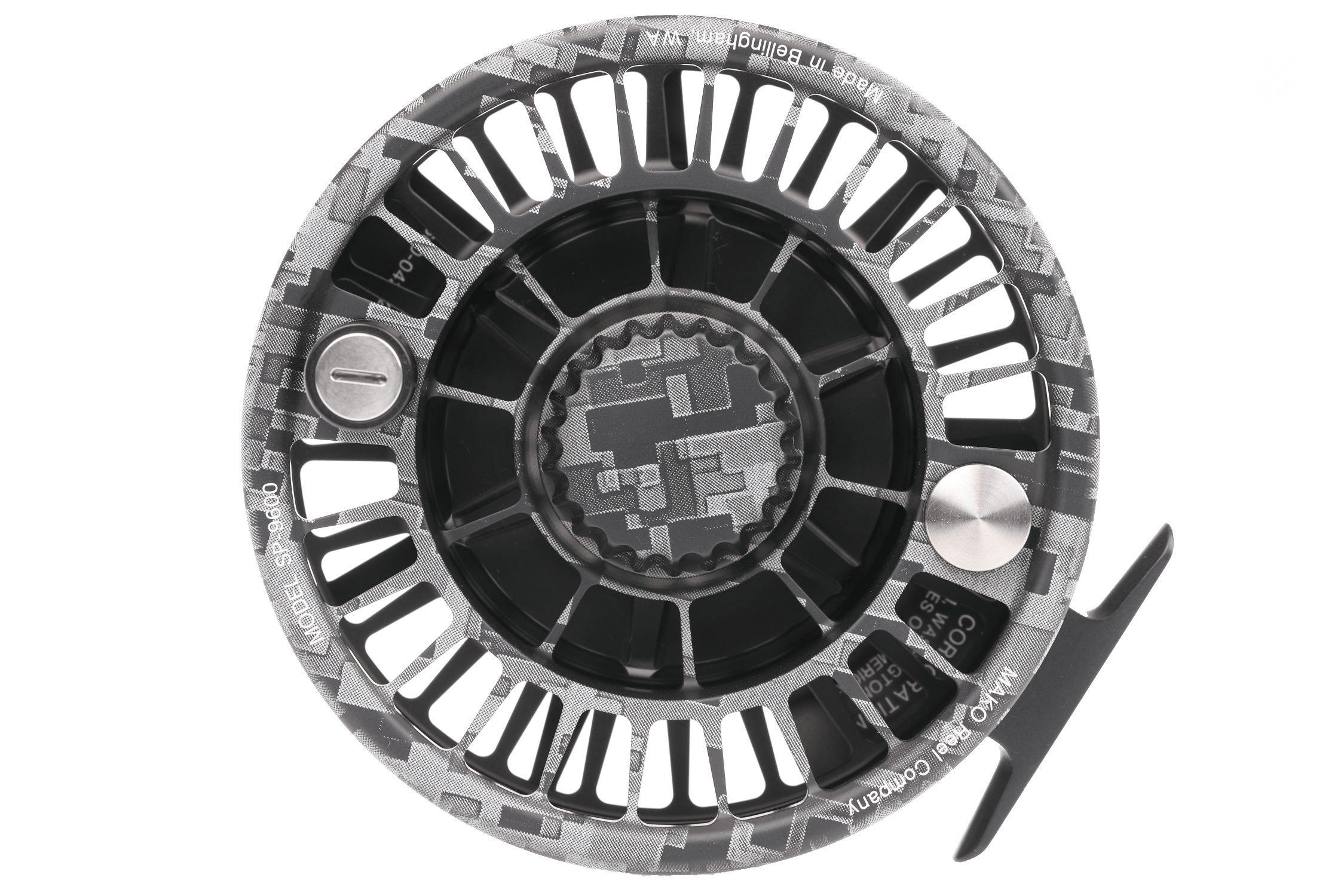

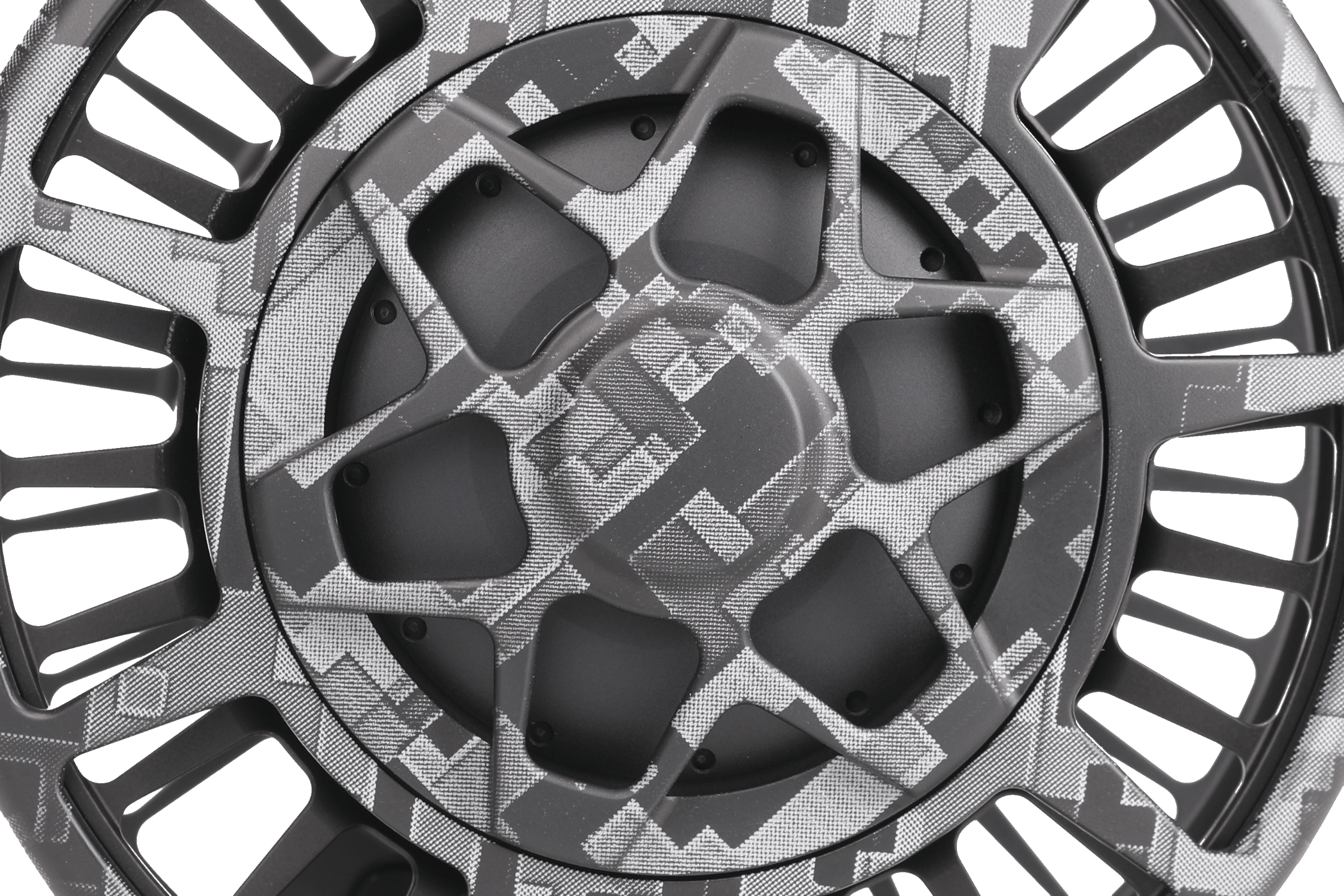

Five Inch Ported Frame - The 9600 runs a 5 inch frame diameter, up half an inch from the 9550 and half an inch short of the 9700, with porting throughout to keep a solid machined reel from getting heavier still. At 15.23 ounces it is heavy, and that is worth stating plainly: in Trident's own testing the 9600 came in roughly 50 percent heavier than a comparable reel like the Hatch Iconic. That mass is the price of a fully sealed machined platform, and it is the right trade when the reel is hanging off a 12 weight and a fish is doing the work. It is the wrong trade if you plan to blind cast all day, in which case the 9550 or a lighter reel is the better buy. The porting also lets soaked backing dry between sessions rather than sitting against solid metal.

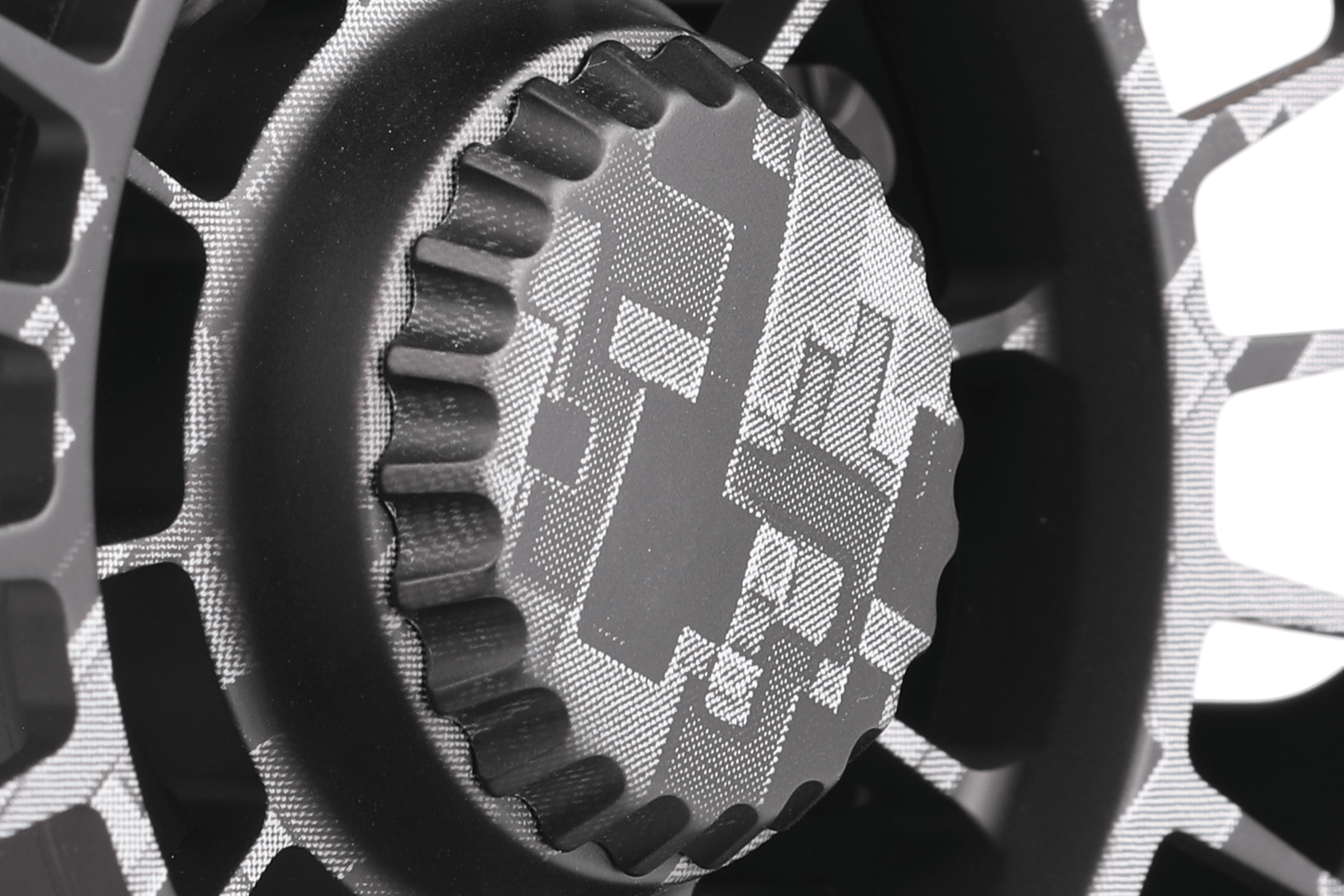

Large Calibrated One-Turn-Stop Knob - The full drag range lives inside a single rotation of an oversized indexed knob with a true one-turn stop, so you go from free spool to maximum in one motion instead of counting turns while a fish burns backing. Trident measured the travel as genuinely linear: about 4.6 pounds at a half turn against a 14.9 pound maximum, and 0.6 pounds with the knob fully backed off, which means the spool never actually free spools and overruns are not a concern. One honest caveat: the knob turns so easily that there is little tactile feedback, so unlike a stiffer drag you cannot feel where you are in the range. Read the index marks rather than your fingertips.

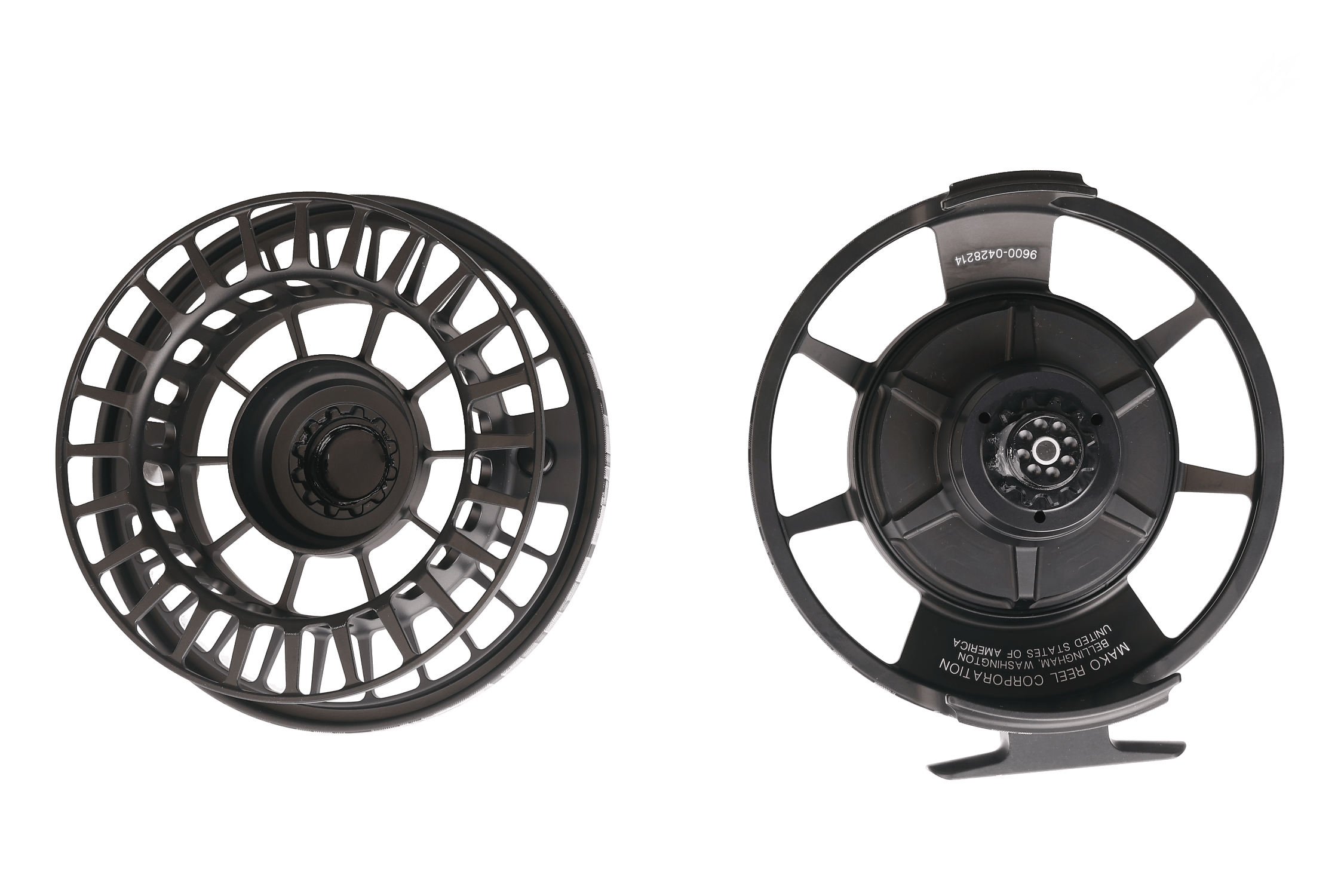

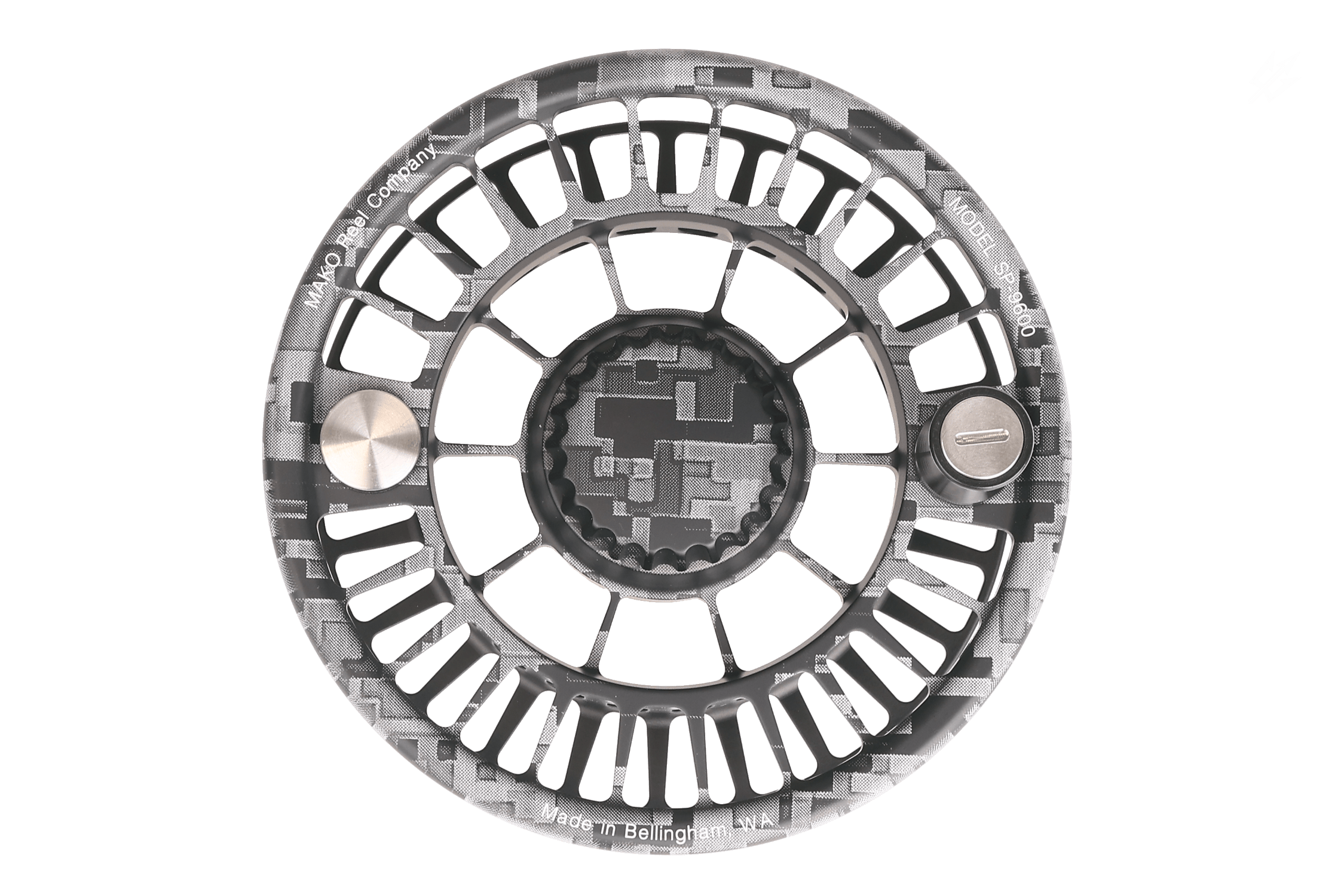

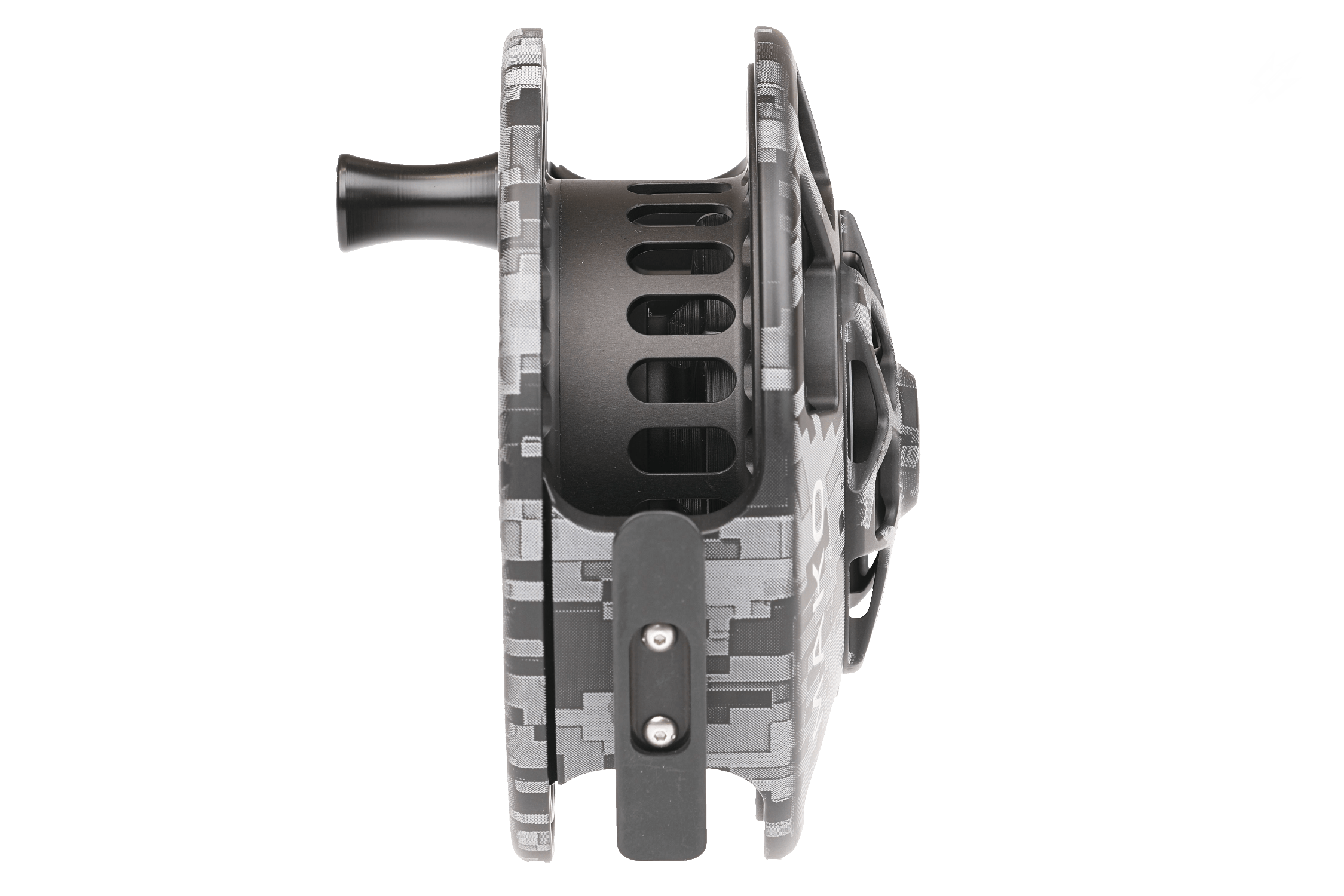

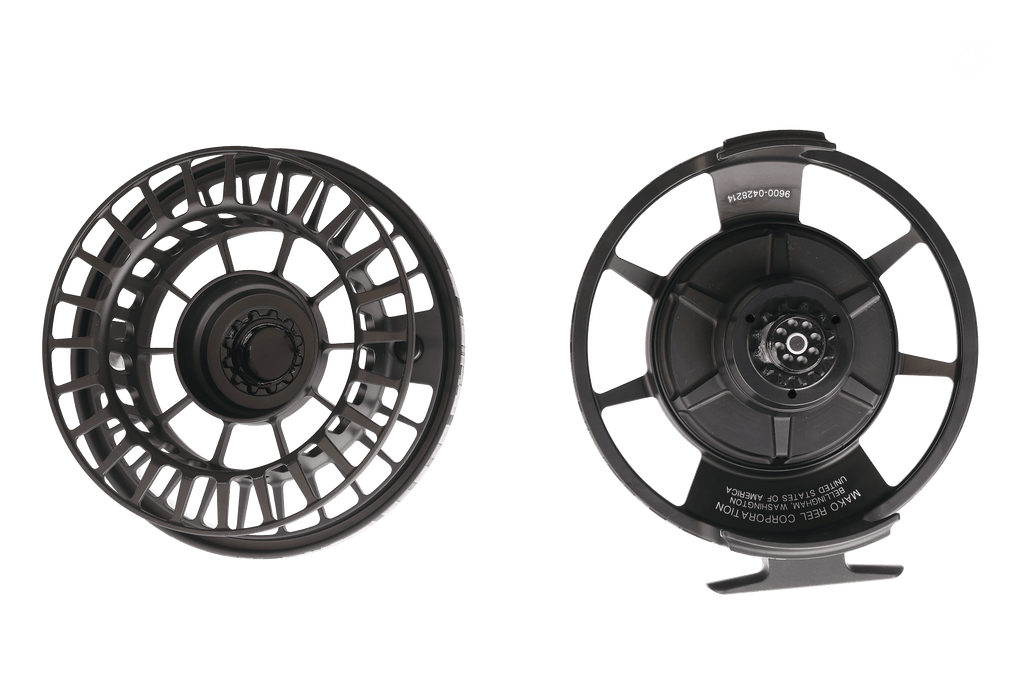

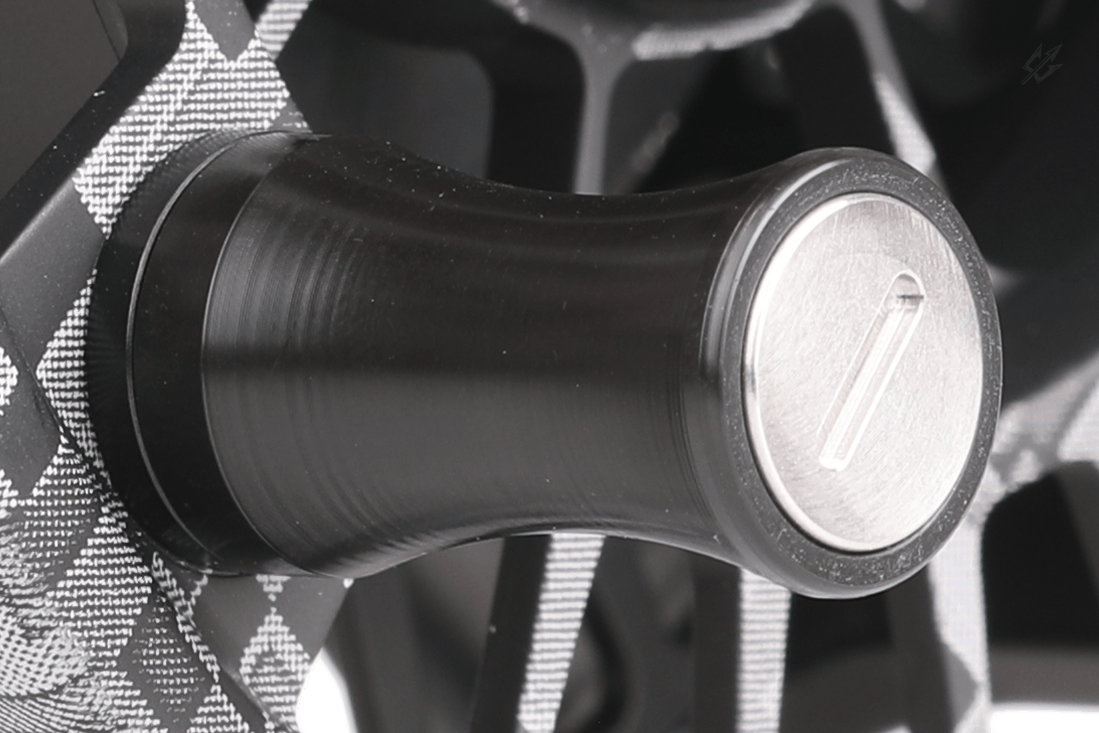

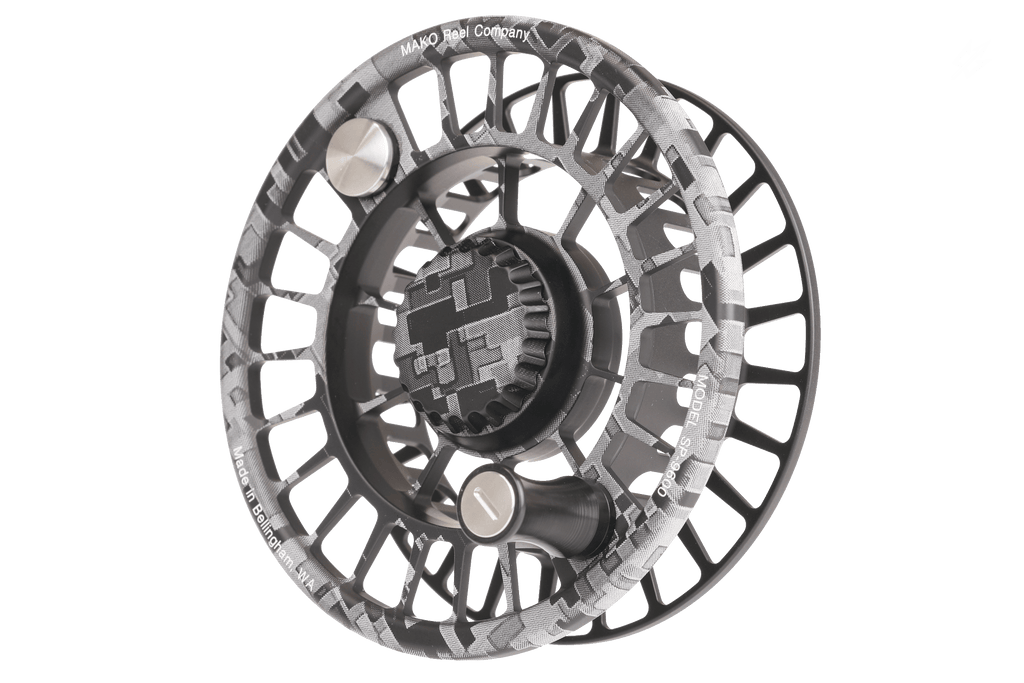

Taper Lock Quick-Change Spool - Spools change on a taper lock system rather than a threaded cap, and the spool rides on a three ball bearing spindle assembly. Both choices exist for longevity in salt: there are no small threaded parts to drop over the gunwale during a spool swap, and a taper lock does not develop play between spool and frame after a few seasons the way a worn thread will. The handle is sized for a big game angler and is easy to find and hold under load.

Finish

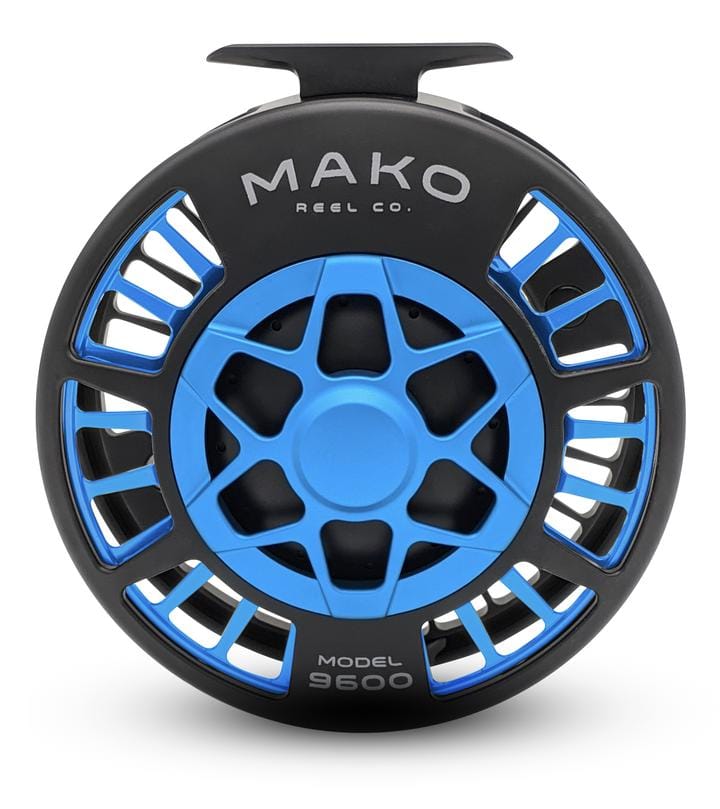

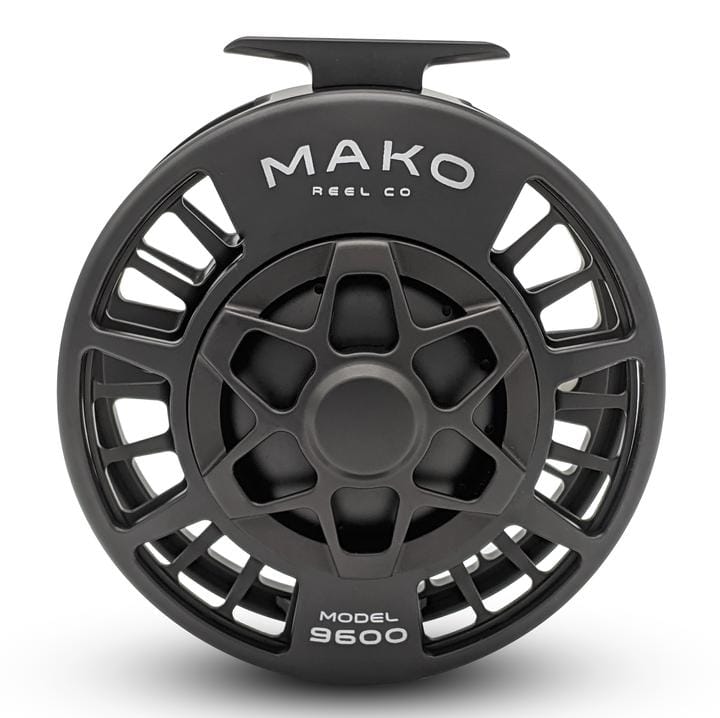

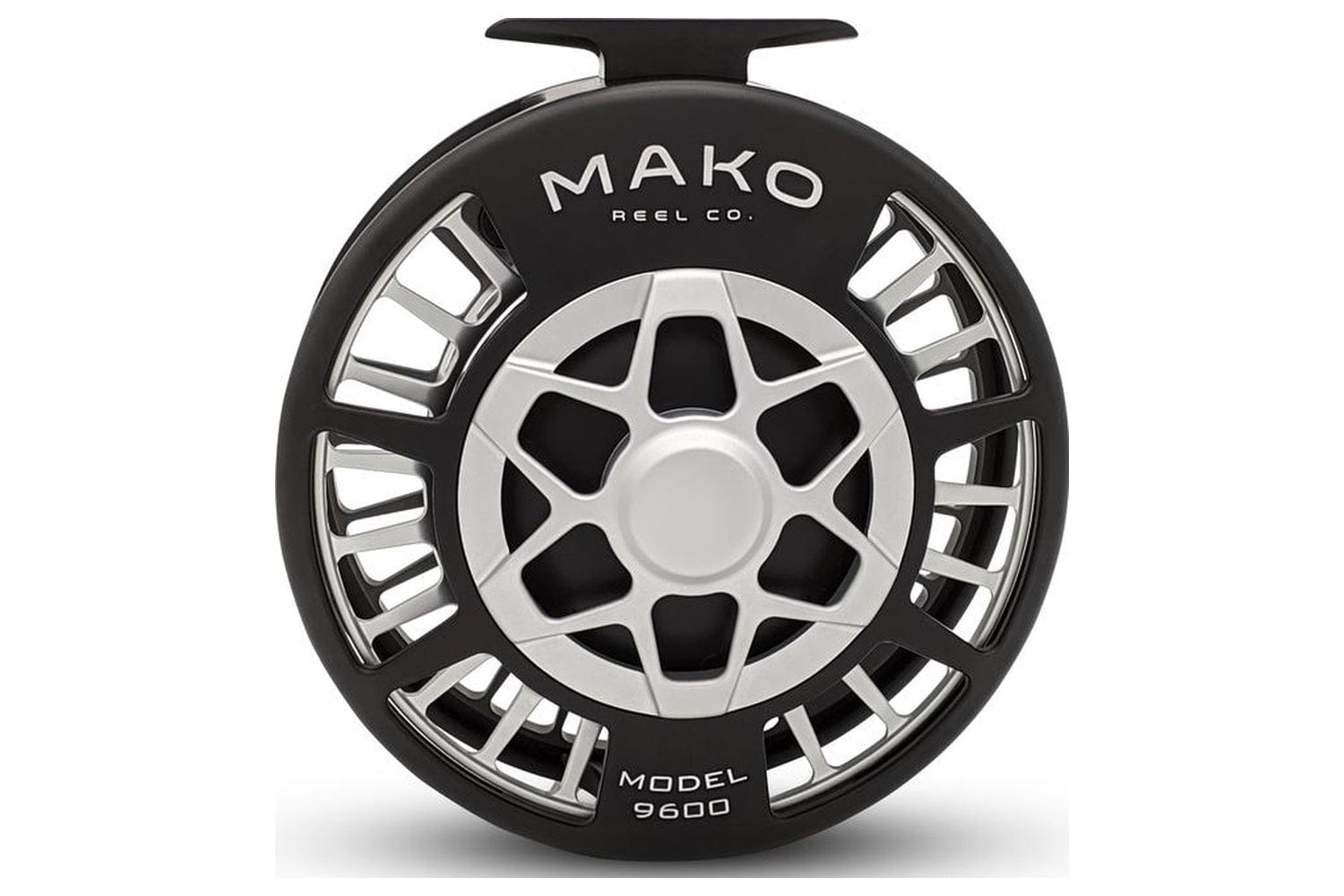

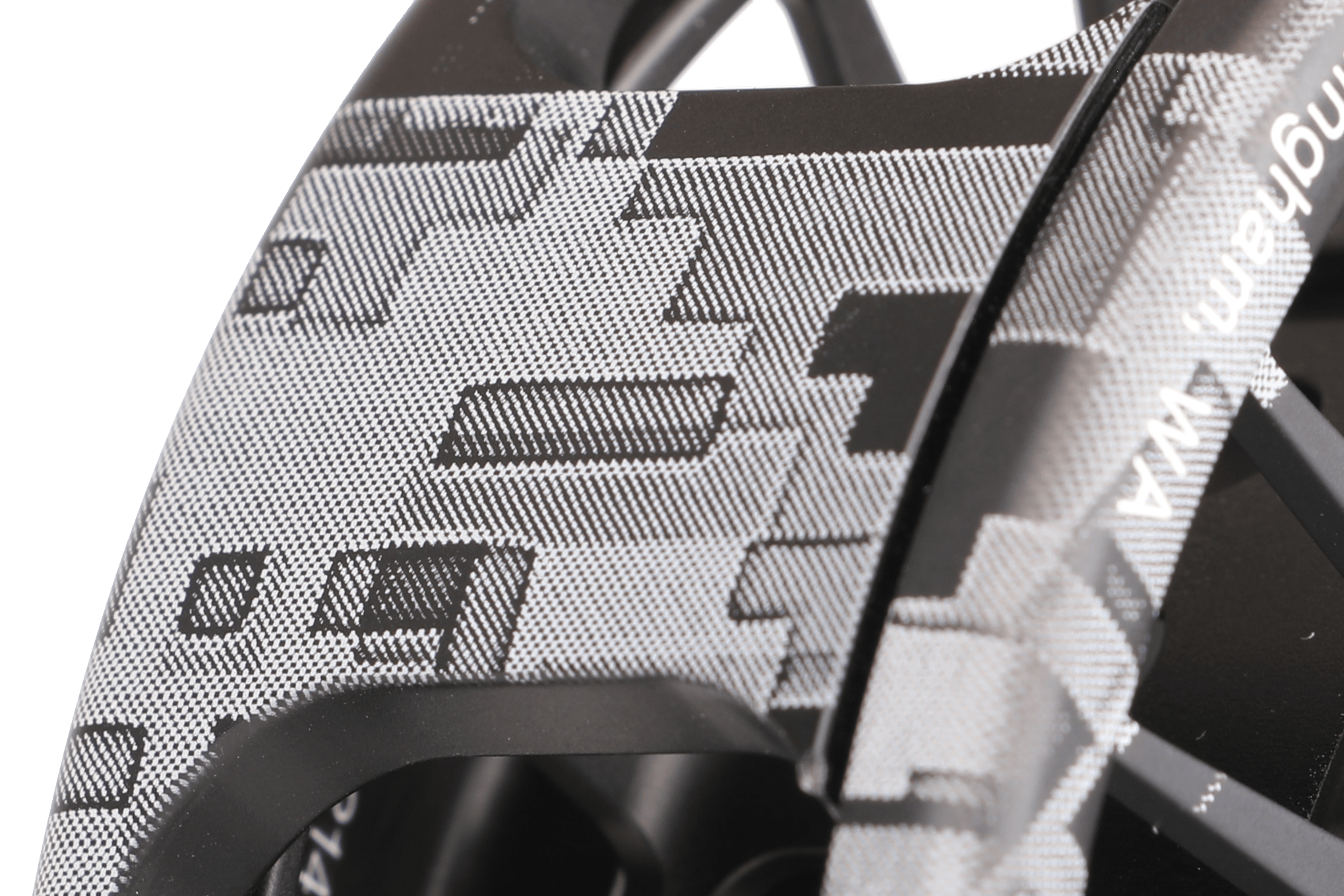

Type III and Enhanced Type II Anodizing - Mako specifies Type III hard anodizing on its black reels, which drives a near ceramic hardness into the surface of the aluminum instead of laying a coating on top of it, and Enhanced Type II anodizing on its color finishes. That distinction matters on a reel expected to live in salt spray, get dragged across a skiff deck and go months between deep cleanings. We stock the 9600 in the same three finishes Mako offers on this model: Matte Black, Matte Platinum on Black and Matte Turquoise on Black. All three are matte rather than gloss, which is the right call on a saltwater reel where a bright reel face is one more thing flashing at a fish in shallow water.

Materials

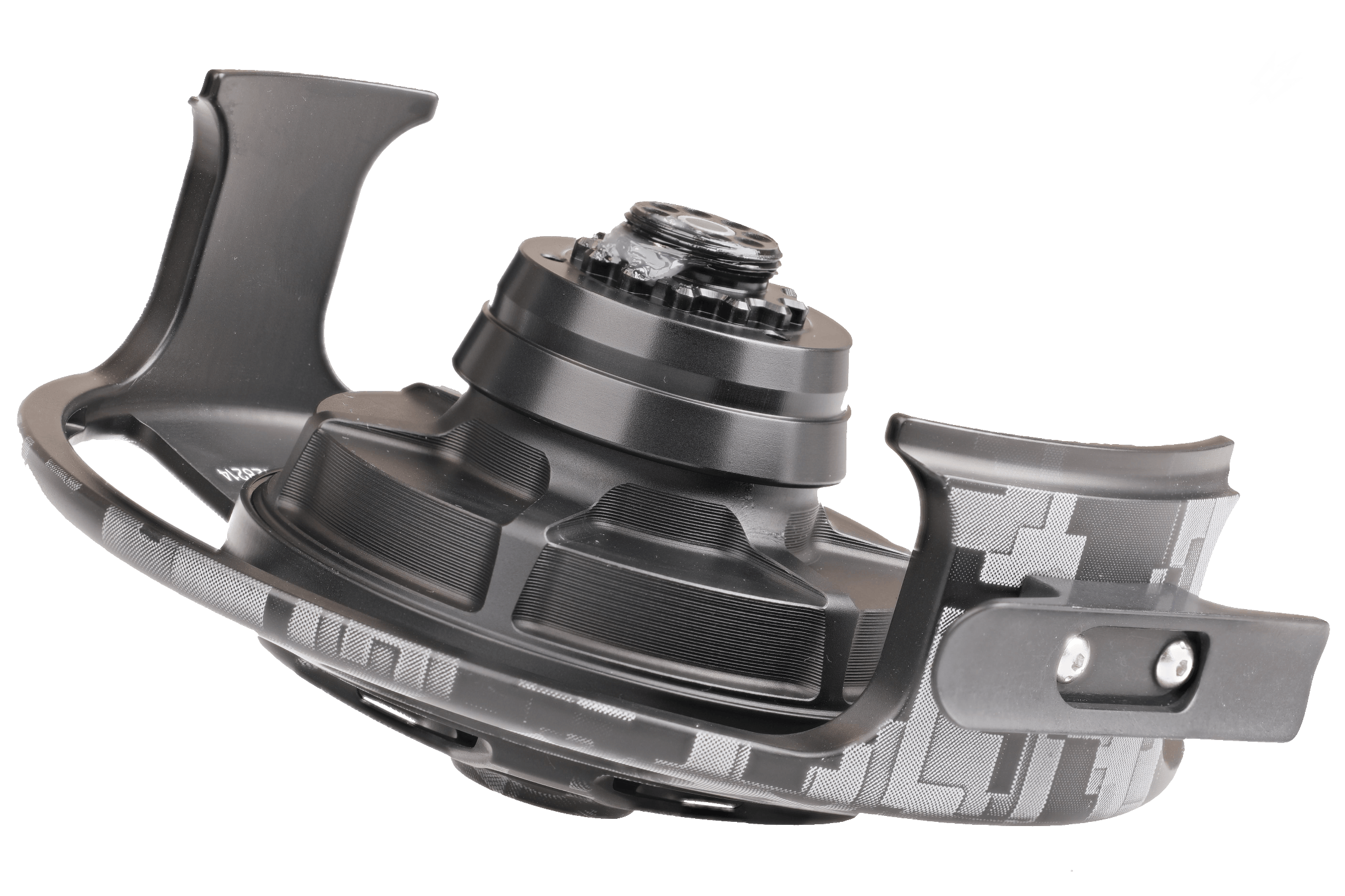

Fully Machined Aluminum - Frame and spool are machined aluminum, produced to what Mako describes as the highest machining standards and level of polish, then hand assembled and individually calibrated before the reel leaves the shop. Machining rather than casting is what makes the rest of the reel possible: a sealed drag only stays sealed if the housing and the lip seals meet inside a very narrow band, and a quick-change spool only stays free of play if spool and spindle are cut to match each other.

Drag

Type - A fully sealed multidisc full-contact carbon fiber drag using Mako's button technology, which is aimed directly at start-up friction. The spool begins turning the instant a fish pulls rather than jolting against a stack that has set while the reel sat, and that first instant is where class tippet and hook holds are lost. Trident measured a maximum of 14.9 pounds on the 9600, which is ample for tarpon and enough to lean on a giant trevally over structure. More useful than the number is that all of it is usable: because the knob is so light to turn, you can reach 100 percent of the available drag with a wet hand mid fight, which is not true of every reel that quotes a bigger figure. The setting you dial holds through a long run instead of fading as the stack heats, and the clicker gives a clean note on the retrieve with a clearly differentiated outgoing sound.

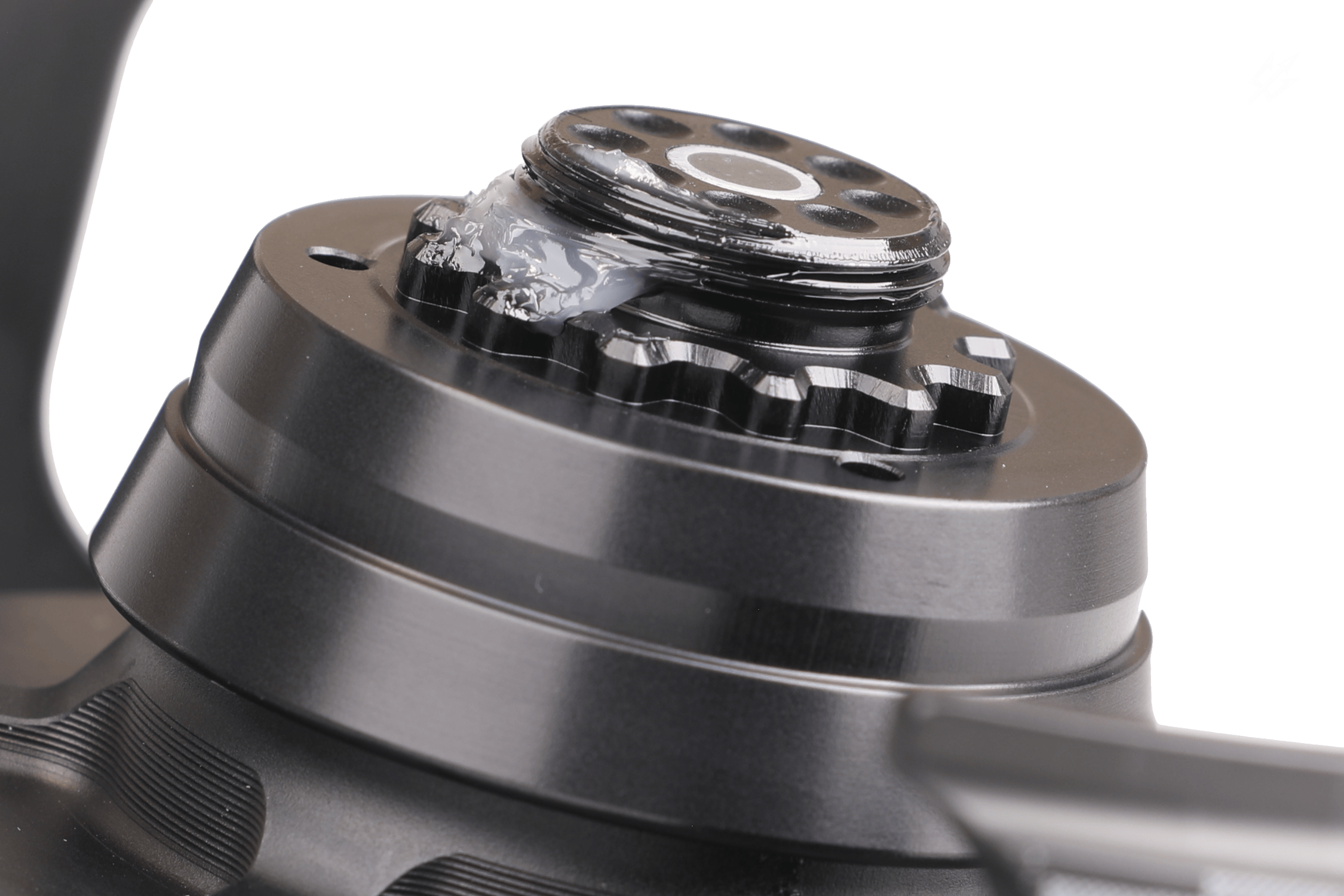

Materials - Carbon fiber discs run inside a housing sealed by o-rings and proprietary carbon impregnated Teflon lip seals. Sealing is the entire point of a reel in this category: salt, sand and grit never reach the drag stack, so the pressure you calibrated in year one behaves the same in year ten without the reel ever being opened. Carbon fiber is the correct disc material here because it sheds the heat a long run generates without losing consistency as it warms, which is exactly what cork and many synthetic stacks fail to do.

Arbor Size

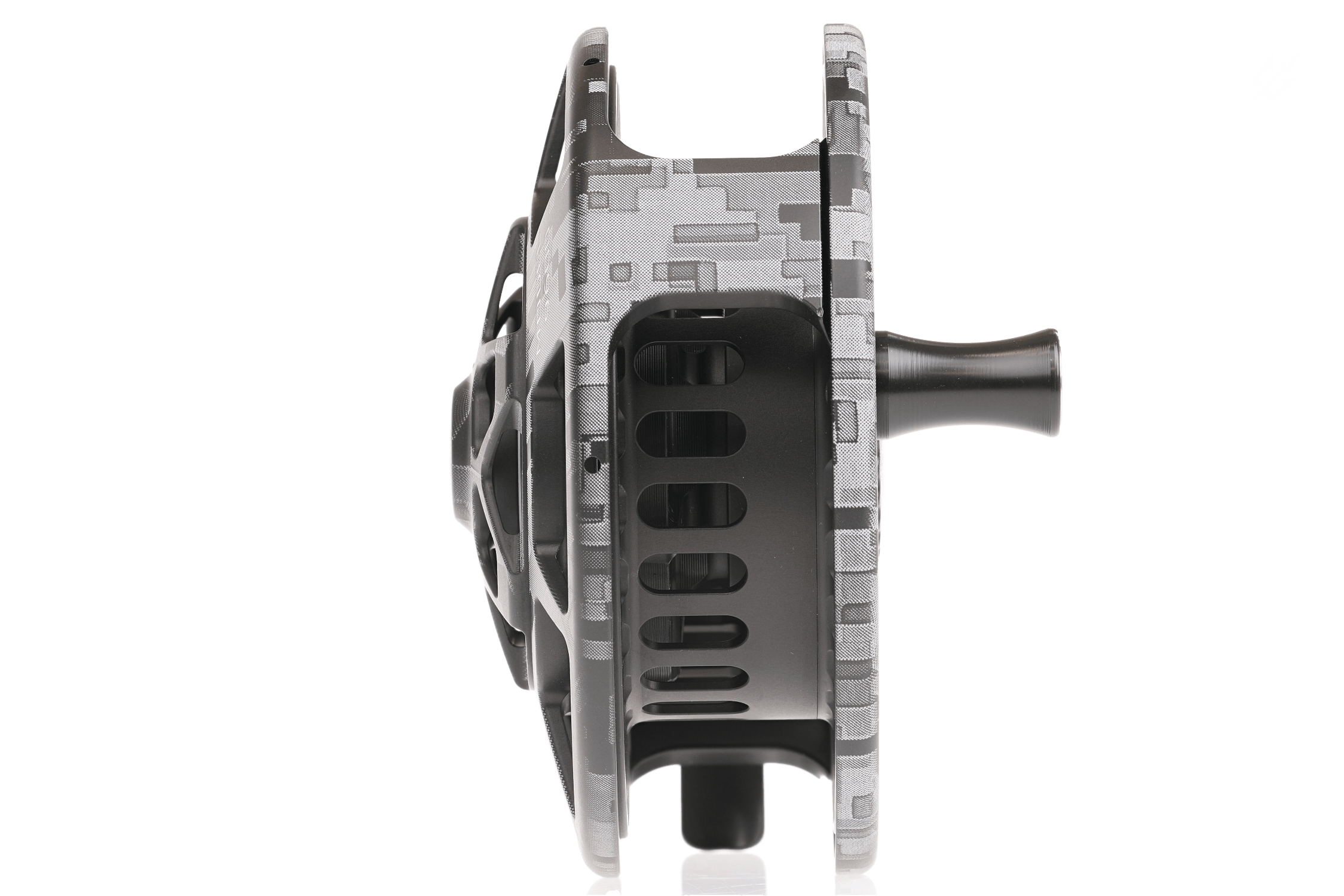

Large Arbor - The 9600 is a large arbor reel and its retrieve rate is one of its strongest arguments. Loaded with 326 yards of 30 pound Dacron, Trident measured better than 12 inches of line pickup per turn, among the fastest in its class, which is what you want when a tarpon changes direction and runs at the boat. The large arbor also matters for how it stacks line: backing lies flat under load instead of digging into itself, and a fly line that has been down to the backing comes back without memory coiled into it. Capacity is achieved without a wide spool, which keeps the line lay even. Mako rates the 9600 for 330 to 440 yards of 60 to 80 pound braid alongside a WF10 line, and recommends 60 to 80 pound GSP braid as the backing. Capacity scales through the range: the 9500 takes 230 to 300 yards of 50 pound braid with a WF7, the 9550 takes 300 to 355 yards of 50 to 60 pound braid with a WF9, and the 9700 takes 410 yards and up of 100 pound braid with a WF12.

Warranty

Mako Lifetime Warranty - As of August 2026, Mako warrants its reels to be free of manufacturing defects and covers repair or replacement of manufacturer defects for the lifetime of the original owner. The warranty does not cover direct, indirect, consequential, incidental or any other damage resulting from use of the reel, and any modification that alters the reel's calibrated settings can void coverage, so drag work goes back to Mako rather than to an outside bench. Register the reel with Mako after purchase and route service requests to them directly.

More Info

• Best for: Saltwater big game, tarpon, giant trevally, permit and tournament fishing
• Line Weight: 10-12 wt
• Frame Diameter: 5 inches
• Weight: 15.23 oz
• Arbor Size: Large, better than 12 inches of pickup per turn when loaded
• Backing Capacity: 330 to 440 yards of 60 to 80 lb braid with a WF10 line
• Recommended Backing: 60 to 80 lb GSP braid
• Drag: Fully sealed multidisc full-contact carbon fiber with button technology, calibrated one-turn-stop knob, 14.9 lbs maximum measured
• Spool: Taper lock quick-change on a three ball bearing spindle assembly
• Finish: Type III hard anodizing in Matte Black, Enhanced Type II in Matte Platinum on Black and Matte Turquoise on Black
• Retrieve: Left or right hand, specified at purchase. Mako offers a paid factory retrieve swap rather than a user conversion
• Sizes in the range: 9500 Inshore (7-9 wt), 9550 Medium (9-11 wt), 9600 Large (10-12 wt), 9700 Bluewater (12 wt and up)
• Included: Backing installed free by Trident
• Built: Hand assembled and individually calibrated
