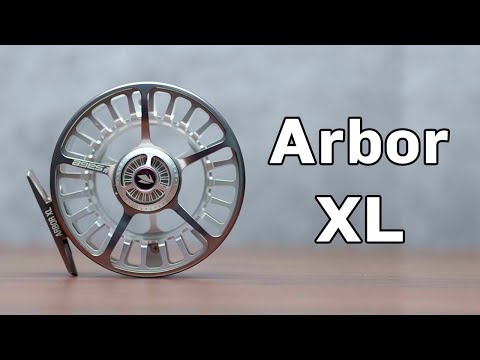

Sage Arbor XL Fly Reel

The Sage Arbor XL Fly Reel is built around one number: a 4 1/8 inch frame on the 4/5/6, close to a full inch larger in diameter than most reels sold for a 5 weight. Sage's stated payoff is 15 percent faster line pickup, and that matters most in one situation, when a fish turns and runs straight at you and the fight is decided by whether you can come tight again before the slack does. To keep that diameter from becoming a heavy reel, Sage kept the spool narrow, 1 1/8 inches on the 4/5/6, and ported the arbor, landing at 4 1/2 ounces. The narrow spool has a second benefit that shows up every day rather than once a season: line stacks across a narrow gap on its own, so level winding takes no thought. Two sizes cover 4 through 8 weight, and the sealed carbon drag underneath is the same package Sage builds for bonefish and salmon, not a trout drag stretched to fit.

Design

Fully machined frame and spool built around an ultra-large, concave, ported arbor. The concave profile is the engineering that makes the rest work: it lets Sage pull material out of the arbor for weight while holding capacity, because a dished arbor carries backing further out toward the rim where every wrap is longer. Porting removes more weight without touching the rim, which is where a reel's stiffness actually lives. The One Revolution Drag Knob is the other design decision worth understanding. The full range of the drag, from light to maximum, happens inside a single turn, marked with 20 numbers and broken into 39 detented settings. You can find a setting, feel the detents, and come back to it exactly, and you never have to guess how many turns you are from the bottom while a fish is running. The reel uses an ergonomic handle and converts from left to right hand retrieve.

Finish

Hard anodized, which is a heavier process than the decorative anodizing on many reels. It grows a thick oxide layer into the surface of the aluminum instead of laying color on top of it, so it resists abrasion from boat decks, rod tubes and wading belts, and it resists salt corrosion. Paired with the sealed drag, that is what makes the Arbor XL a real saltwater reel rather than a freshwater reel that survives a beach day. Three colors are offered, and all three are available here in both sizes: Slate, Frost and Tempest Blue. Sage includes a neoprene and embroidered ballistic nylon reel case, which is the padded protection a reel this diameter needs when it travels in a duffel rather than in a rod tube.

Materials

Frame and spool are 6061-T6 aerospace grade aluminum, fully machined rather than die cast, and Sage cold forges and tempers the material before cutting it. That extra step is the reason the frame can carry this much diameter and this much porting at 4 1/2 ounces: cold forging compacts the grain structure of the alloy so the finished part is stiffer and stronger than the same shape cut from untreated stock, which in turn lets Sage machine more material away. Stiffness is not an abstraction on a large diameter reel. The bigger the frame, the more leverage a hard run puts on it, and a frame that flexes opens the gap between spool and frame where thin running line and backing get trapped.

Drag

Type - Sage's Sealed Carbon System, or SCS, a carbon disc drag that is fully sealed. Sage states the system is sealed to keep out water, sand, grit and salt, so there is no path for a wave over the gunwale or a spool set down in beach sand to reach the drag surfaces. That specification is what decides whether a reel belongs in salt water at all, and it is why the Arbor XL is aimed at bonefish and silvers as much as at trout. Sage also tunes the drag package separately for each size class rather than running one stack across the range, so the 4/5/6 is set for pressures light tippet can take and the 6/7/8 for a fish that will put you into backing.

Materials - The stack runs carbon discs. Carbon is the standard in sealed drags for two reasons that both show up during a fight. It has very low startup inertia, meaning the pressure needed to get the spool moving is close to the pressure needed to keep it moving, so a fish that bolts does not hit a spike that pops tippet. It also sheds heat and holds its setting through a long run, where a lesser material fades as it warms and the drag you set at the start is not the drag you have 100 yards down. Because the stack is sealed, it needs no routine cleaning or greasing to keep behaving that way.

Arbor Size

Ultra-large arbor, and here that is not marketing language layered onto an ordinary large arbor. At 4 1/8 inches on the 4/5/6 and 4 1/2 inches on the 6/7/8, these are diameters other makers reserve for reels two or three line sizes up. The direct payoff is retrieve rate, the 15 percent Sage claims, and it compounds as the fight goes on: with more backing off the spool a large arbor keeps its working diameter closer to the frame diameter, so the reel does not slow down as a fish takes you deep the way a standard arbor does. The second payoff is line memory. Fly line stored in wide coils comes off flatter, so it shoots on the first casts of a cold morning instead of needing to be stretched out first.

Warranty

Sage covers the Arbor XL with an original owner lifetime warranty against defects in materials and workmanship, on reels purchased through an authorized dealer. The coverage is not transferable to a second owner, and it does not cover misuse, neglect, normal wear, fire, theft, intentional breakage or modification. Damage outside the warranty is handled as a paid repair, and Far Bank, Sage's parent company, publishes one flat rate for reels rather than the age based schedule it uses for rods: as of August 2026, all repairs on Sage and Redington reels not covered by warranty are 50 dollars. You pay to ship the reel in and Far Bank pays the shipping to send it back. Far Bank quotes roughly two to four weeks for reel repairs.

More Info

• Best for: Freshwater and saltwater, trout through bonefish, salmon and silvers on 4 through 8 weight rods
• Arbor Size: Ultra-large, concave and ported
• Drag: Sealed Carbon System (SCS) sealed carbon disc drag
• Drag Knob: One Revolution knob, 20 numbers and 39 detented settings across a single turn
• 4/5/6: 4 1/8 in diameter, 1 1/8 in spool width, 4 1/2 oz, holds WF6 plus 100 yd of 20 lb backing
• 6/7/8: 4 1/2 in diameter, 1 1/4 in spool width, 6 1/2 oz, holds WF8 plus 200 yd of 20 lb backing
• Colors: Slate, Frost, Tempest Blue, all three available in both sizes
• Retrieve: Convertible left or right hand
• Frame and Spool: Cold forged and tempered 6061-T6 aluminum, fully machined, hard anodized
• Included: Neoprene and embroidered ballistic nylon reel case
